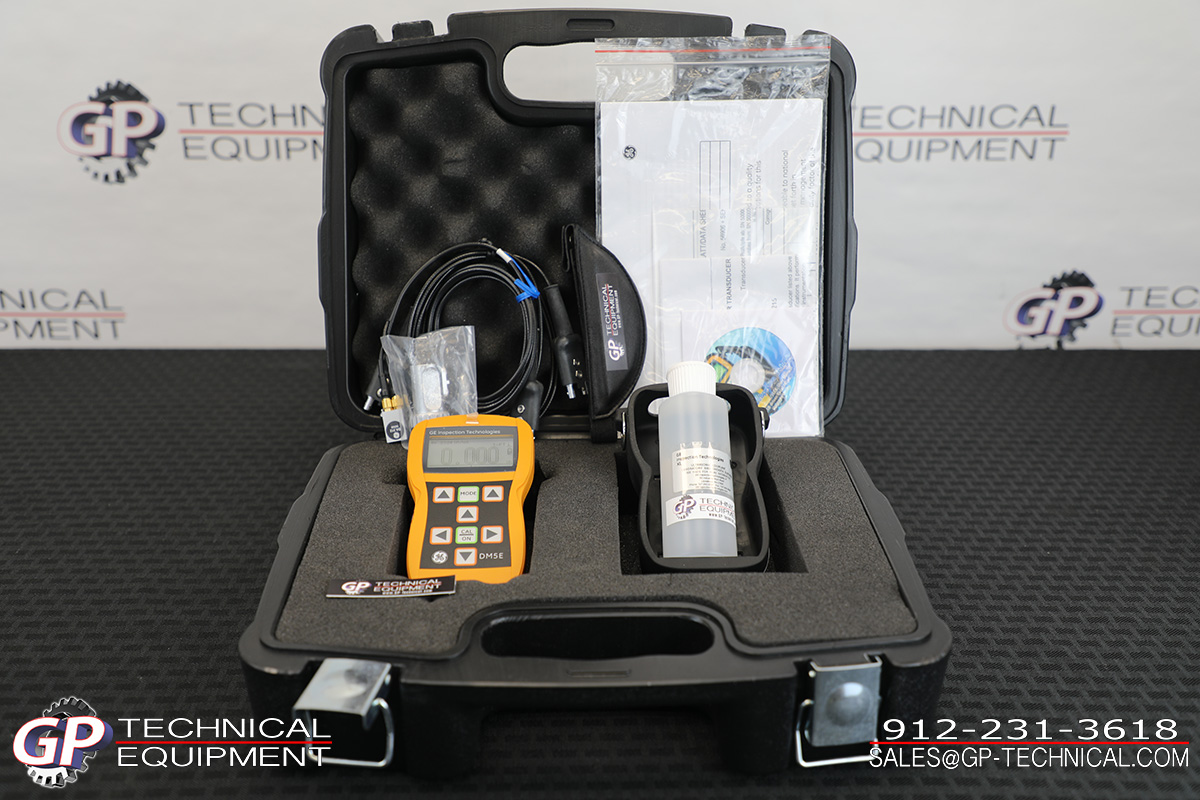

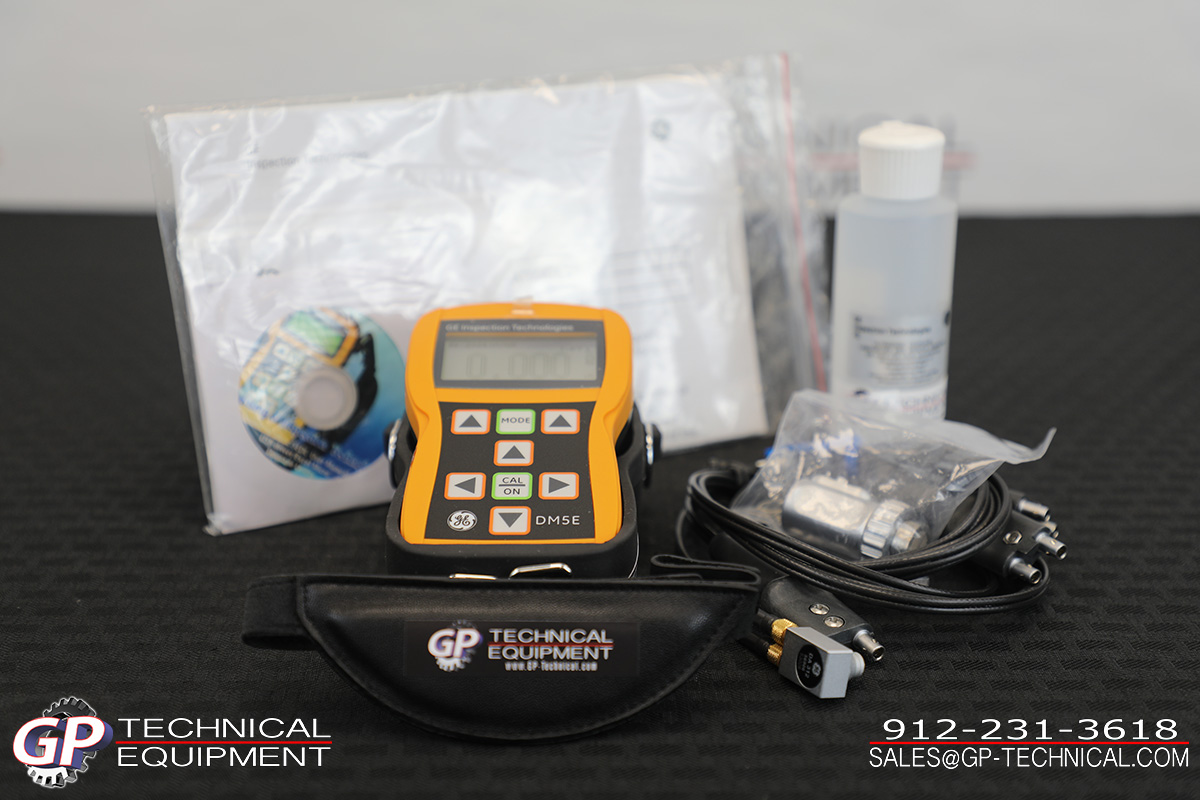

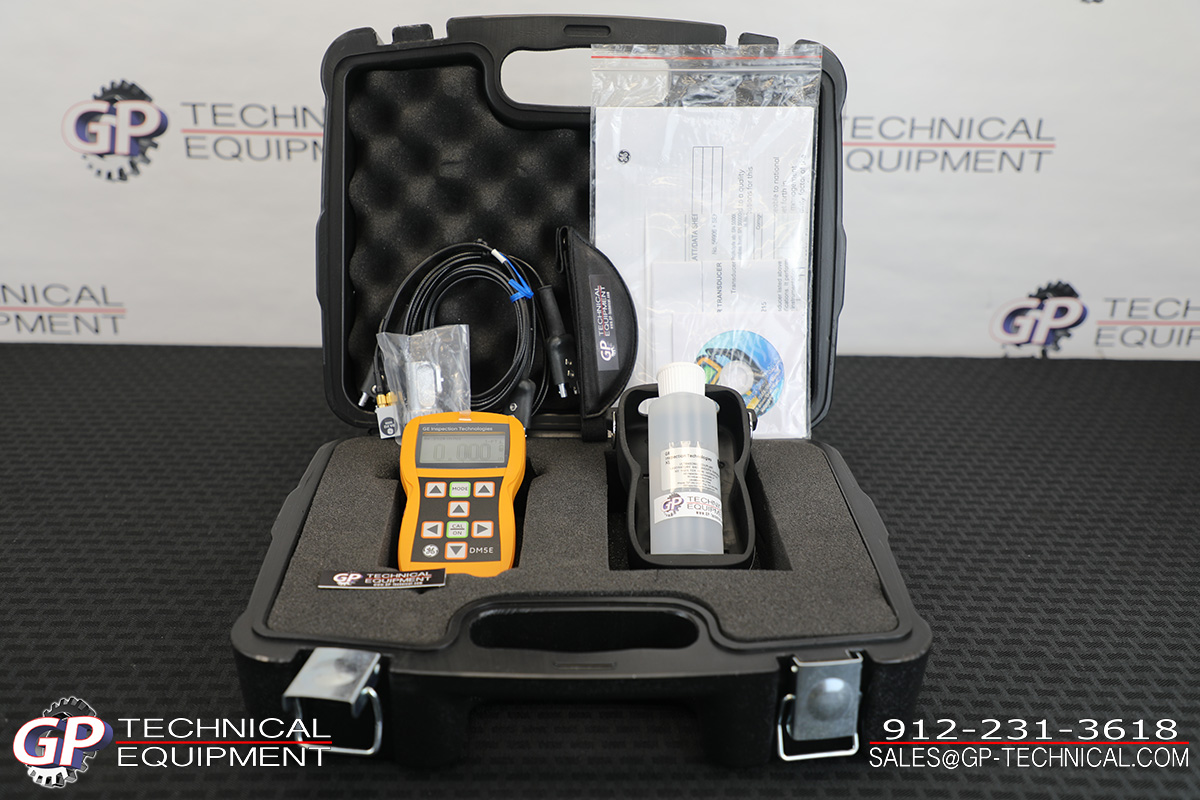

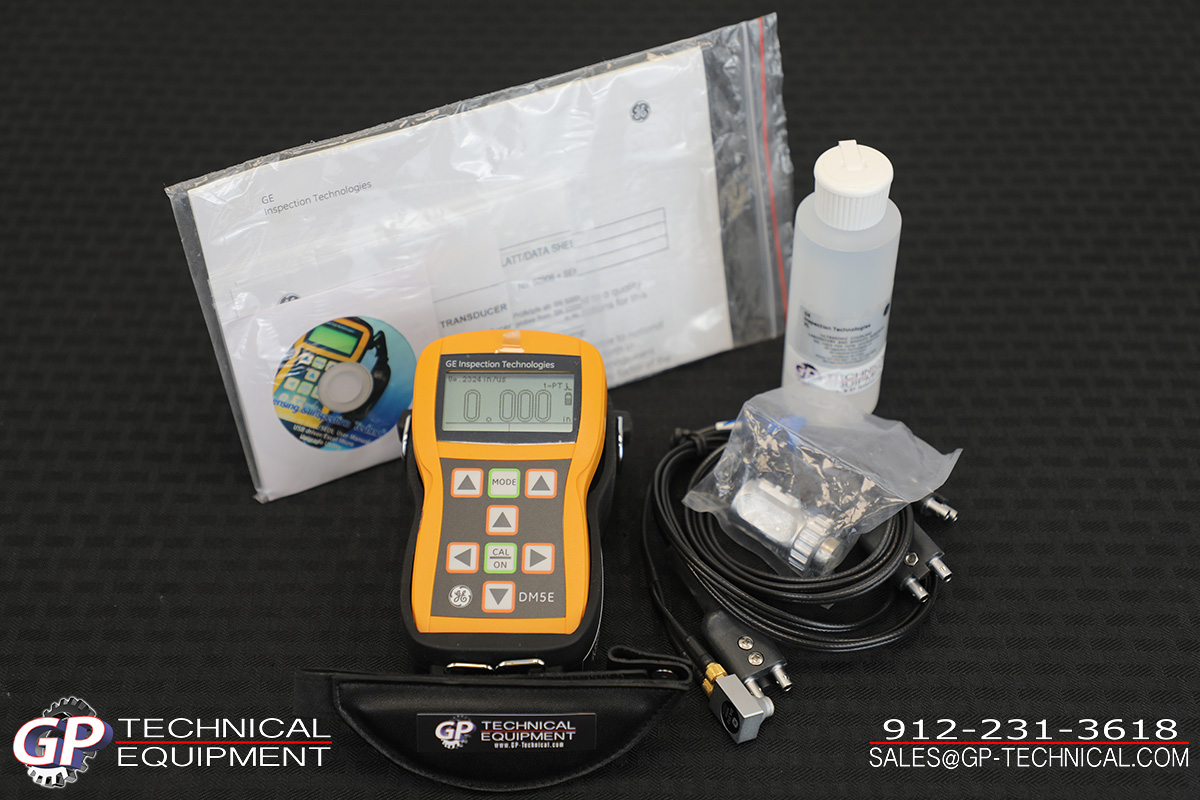

The DM5E Family
The DM5E family is the latest generation of portable corrosion monitoring thickness gauges form GE Sensing & Inspection Technologies. It offers significant improvement in performance over previous corrosion thickness gauges in terms of better thickness measurement stability and repeatability at normal and elevated temperatures. It has been designed for operation in the harshest of working environments, performing wall thickness measurements on pipelines, pressure vessels and storage tanks in the oil and gas industry, as well as the petrochemical and power generation sectors.
Choose from three levels of functionality:
DM5E Basic, DM5E, or DM5E DL.
The DM5E Basic

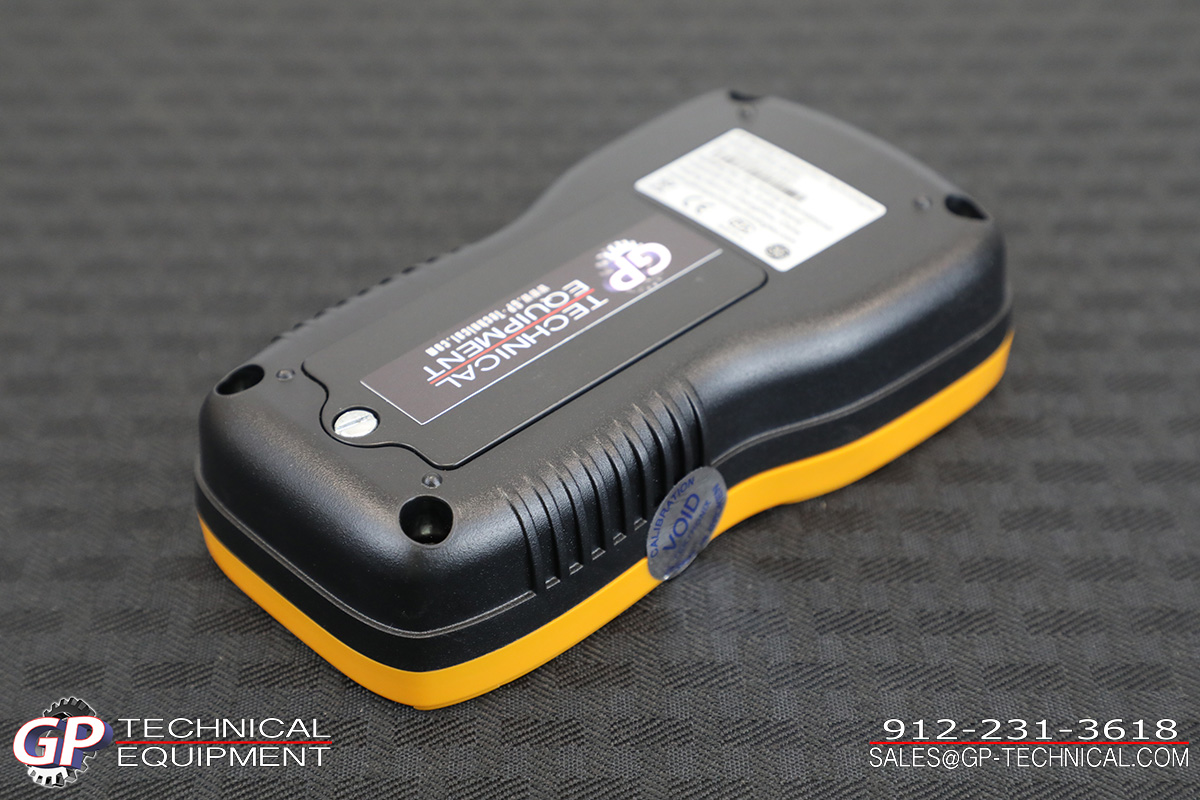

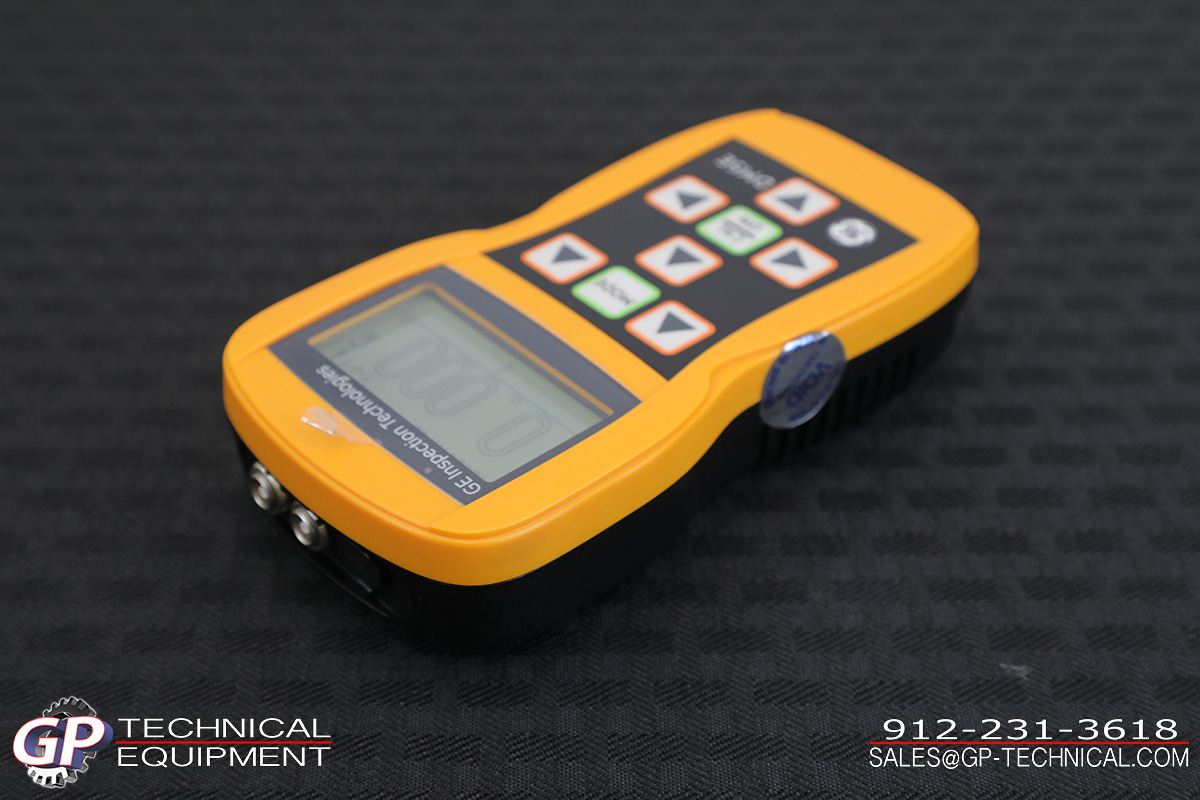

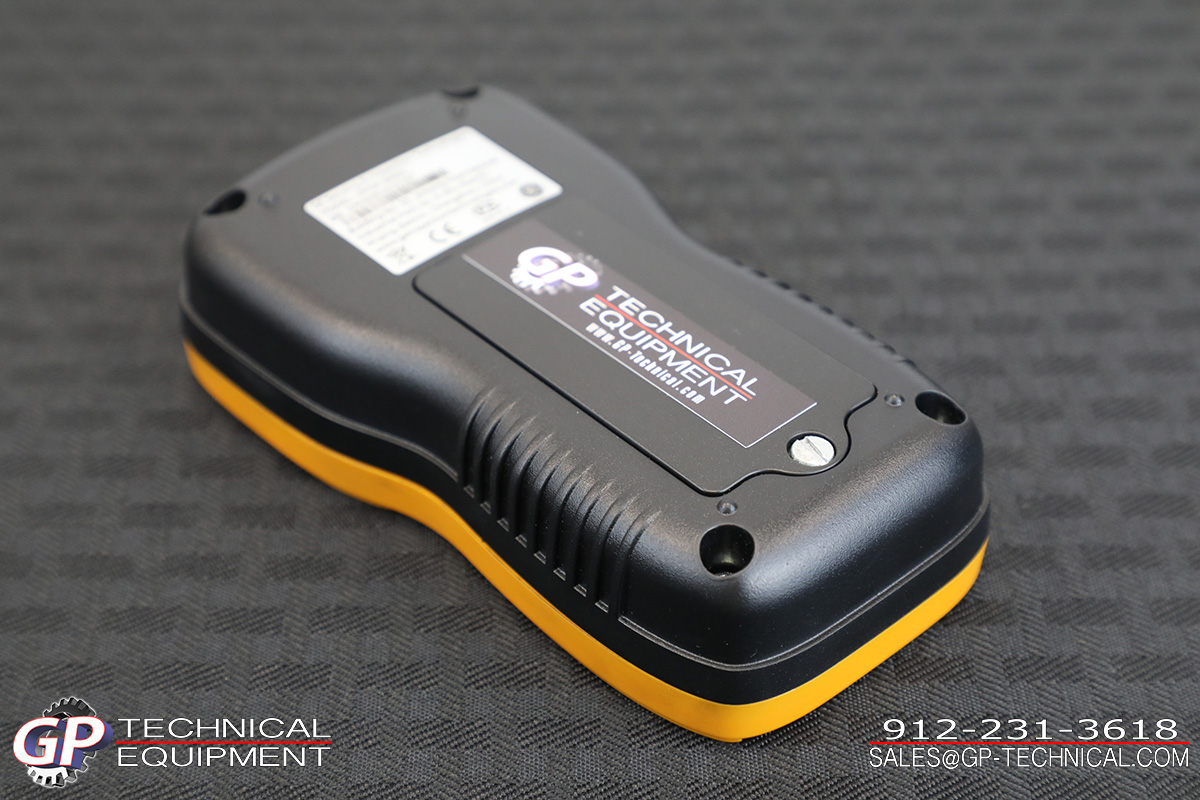

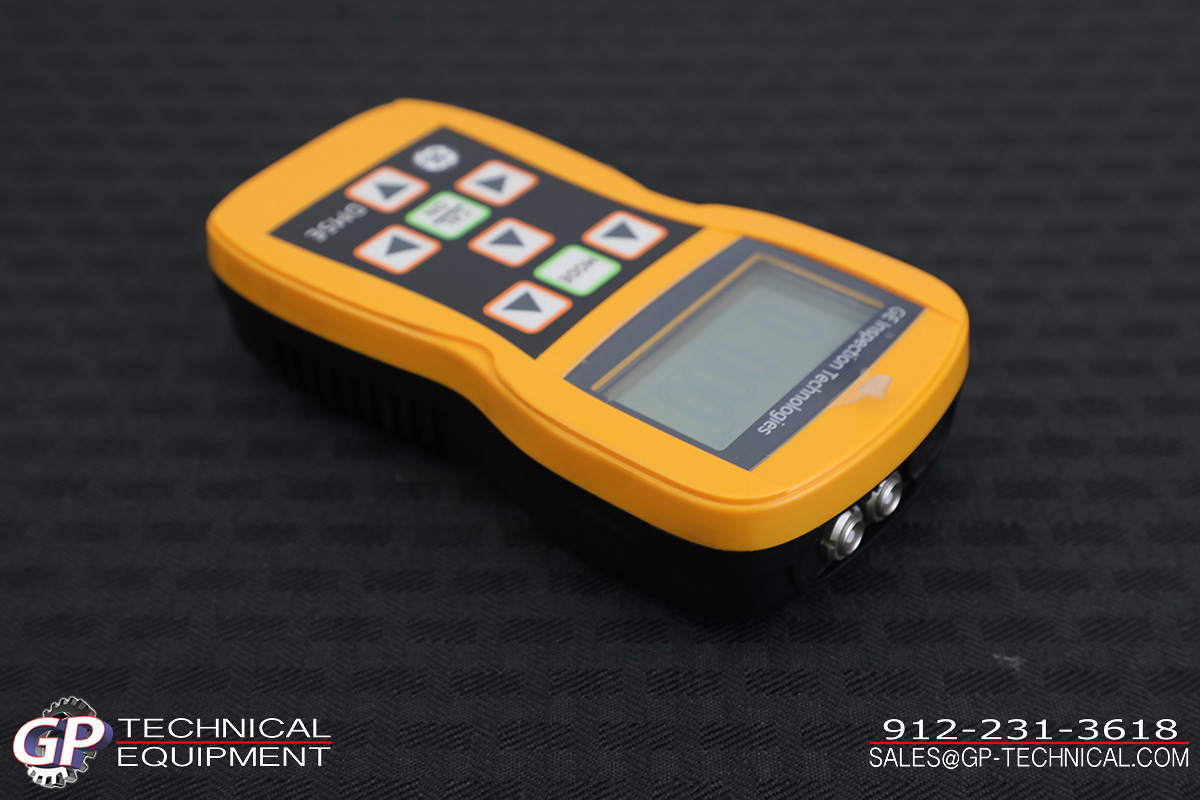

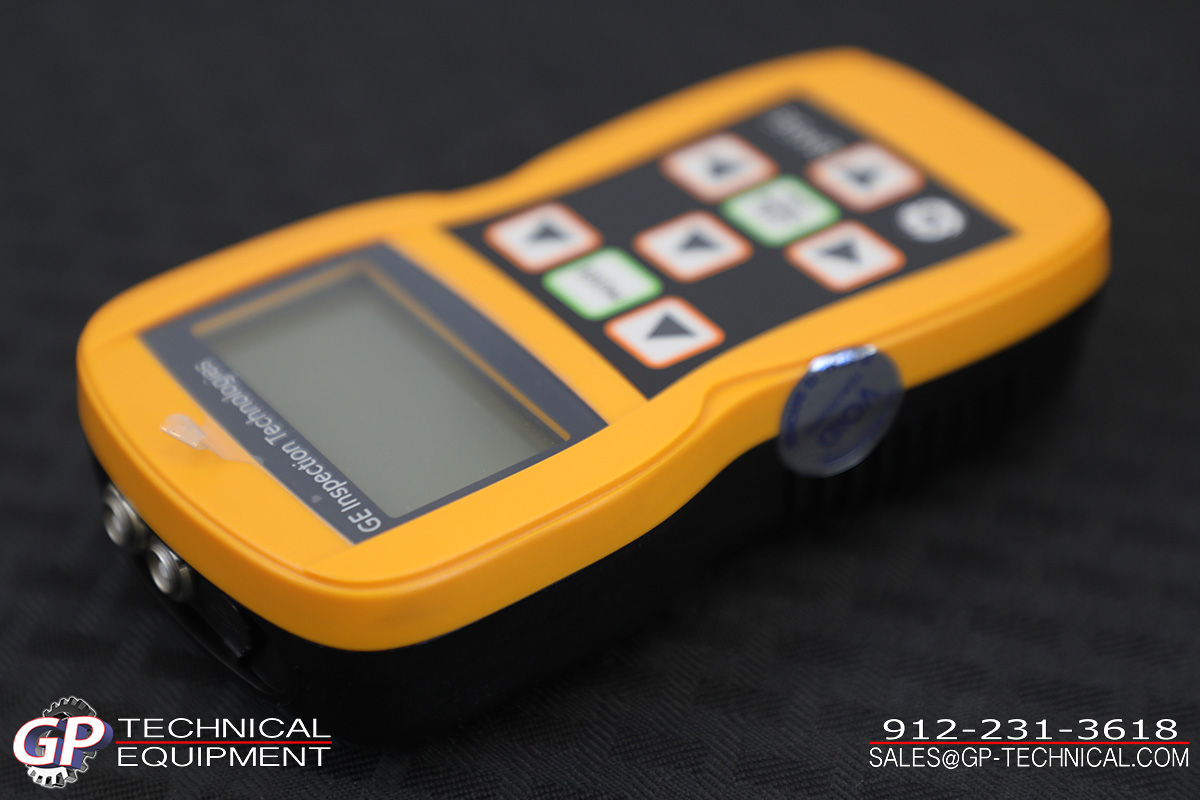

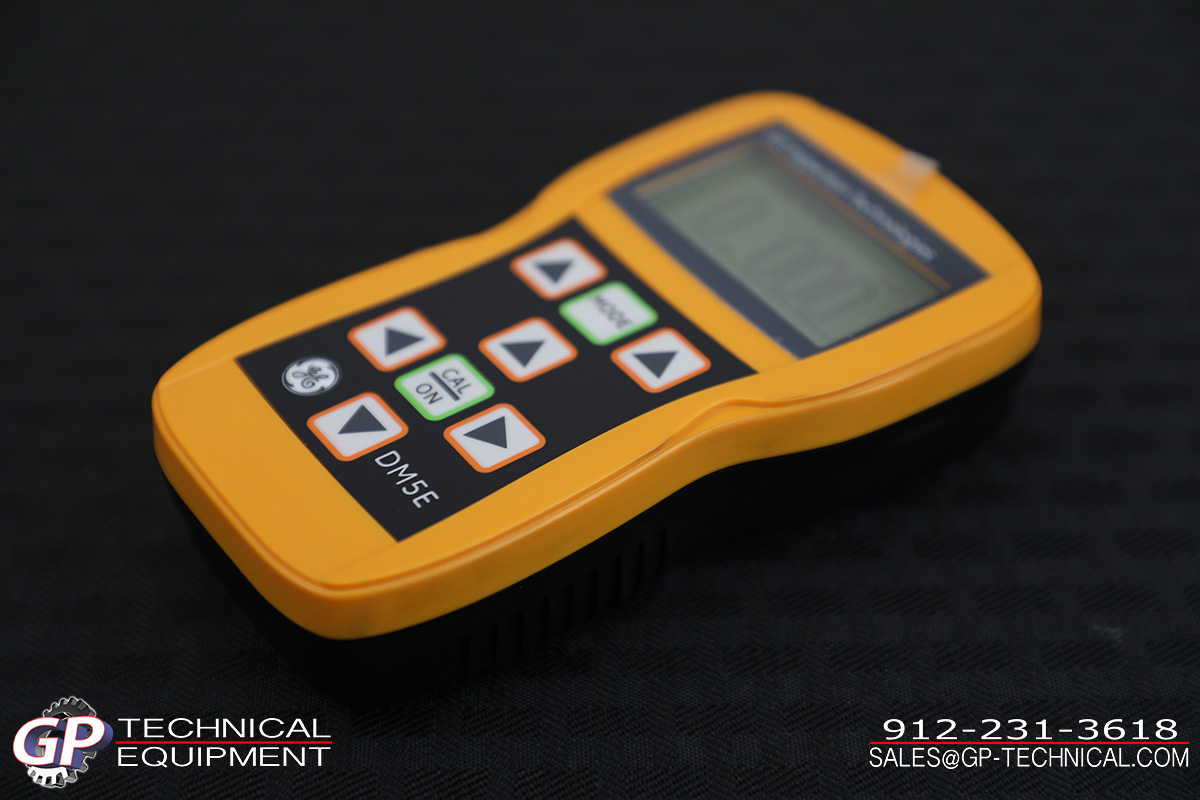

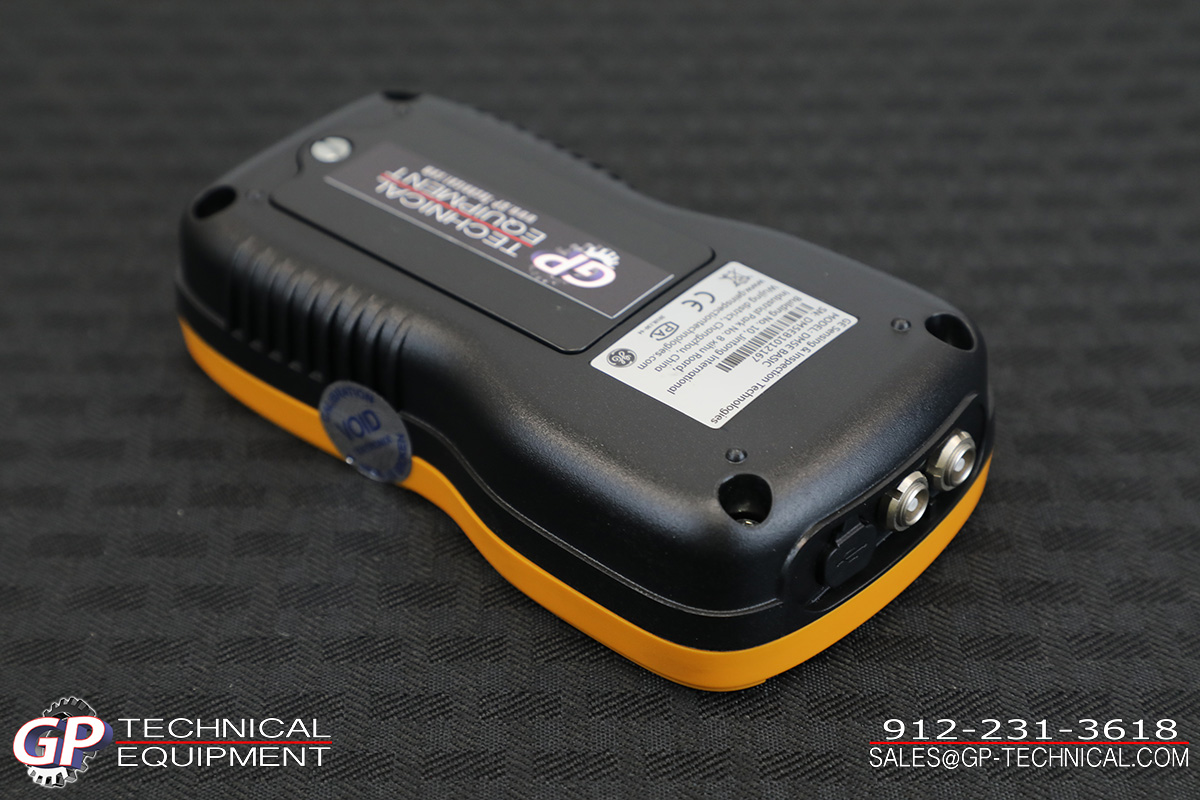

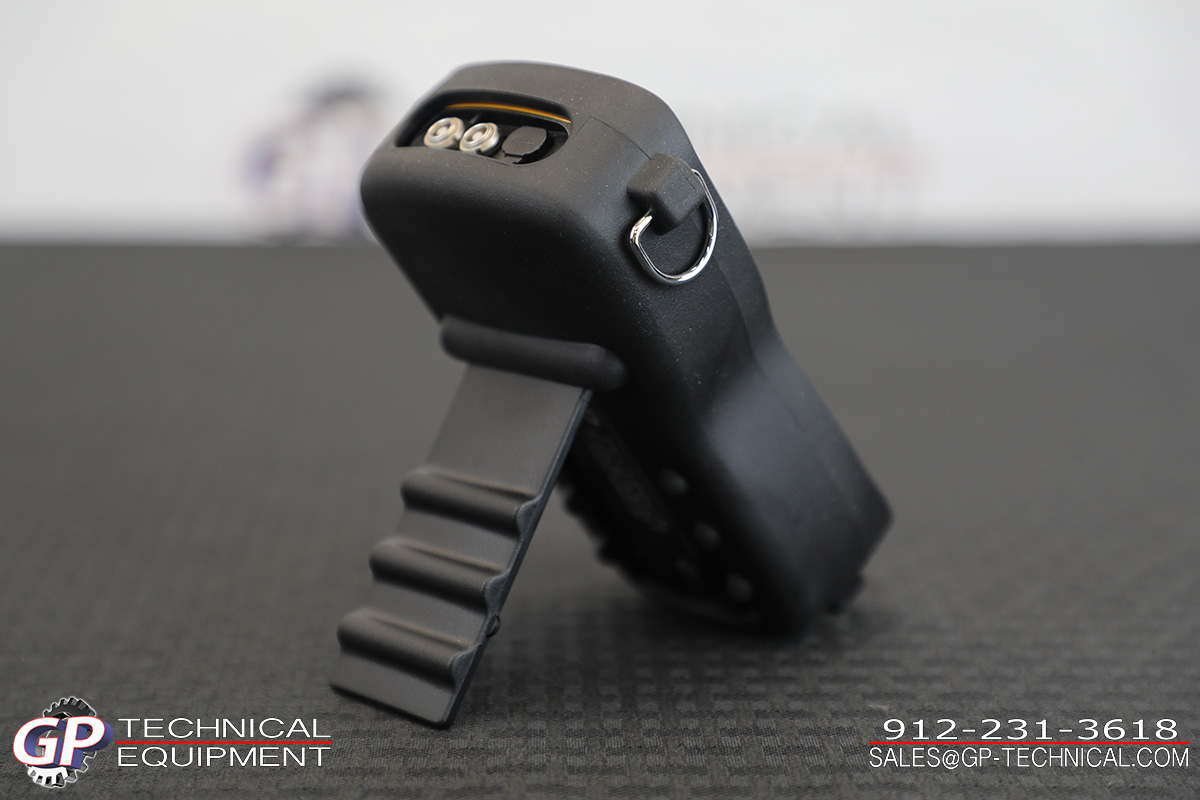

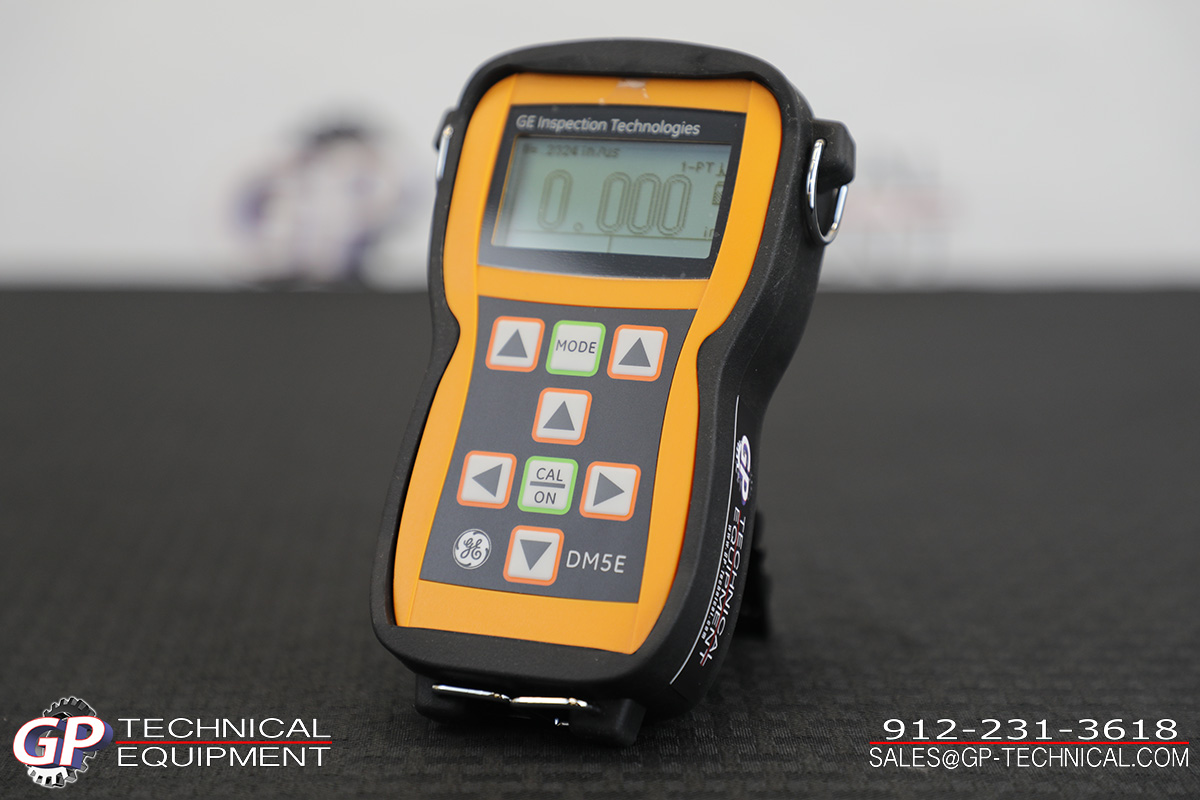

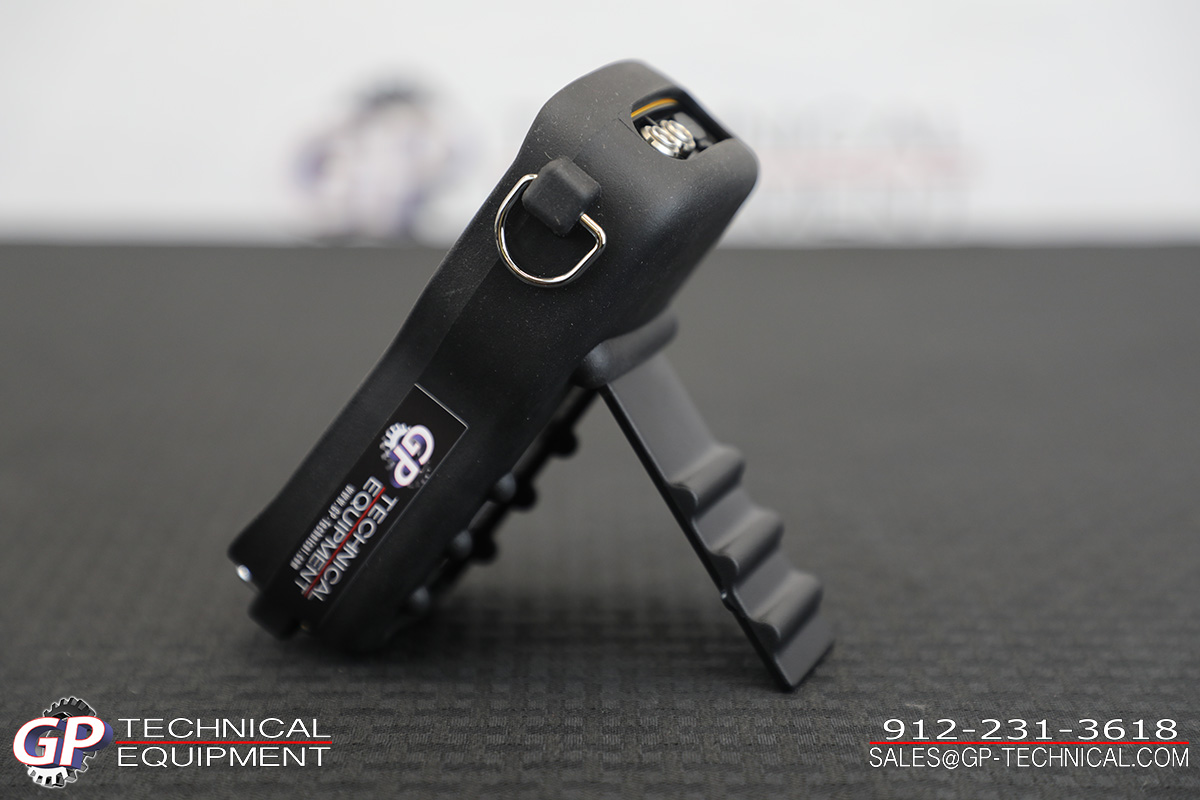

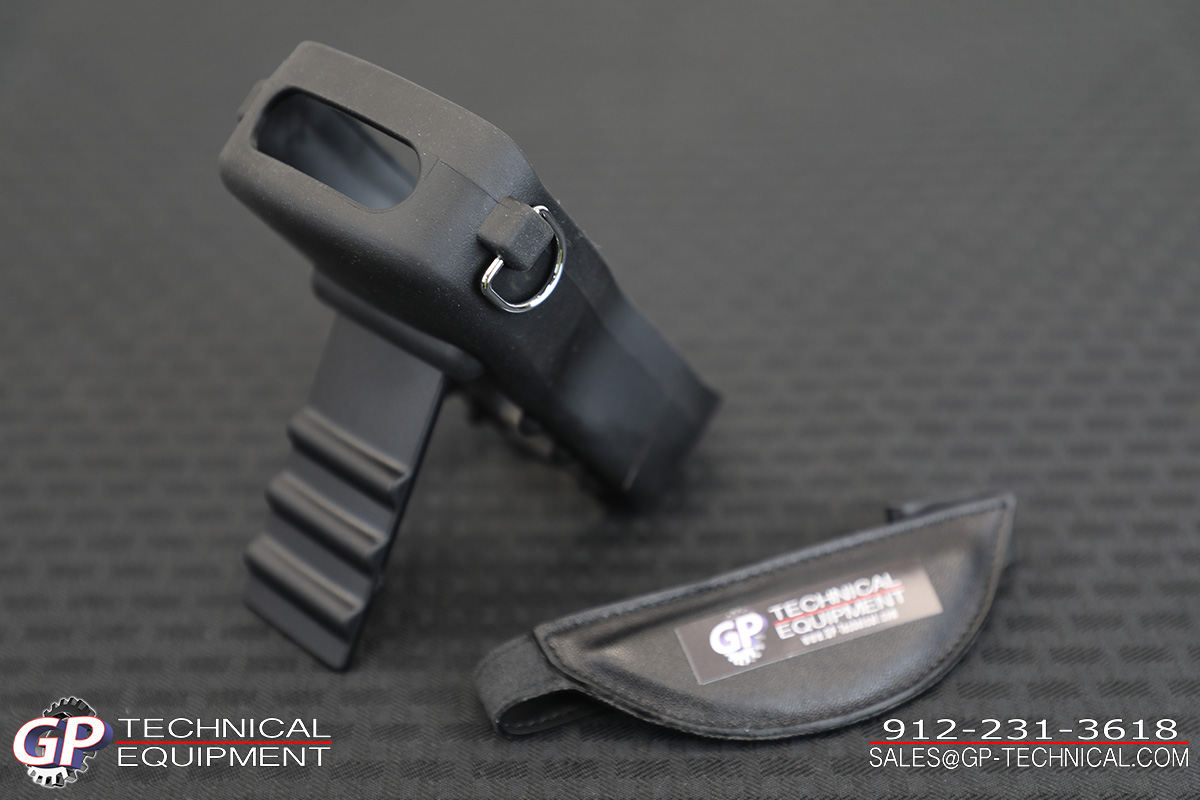

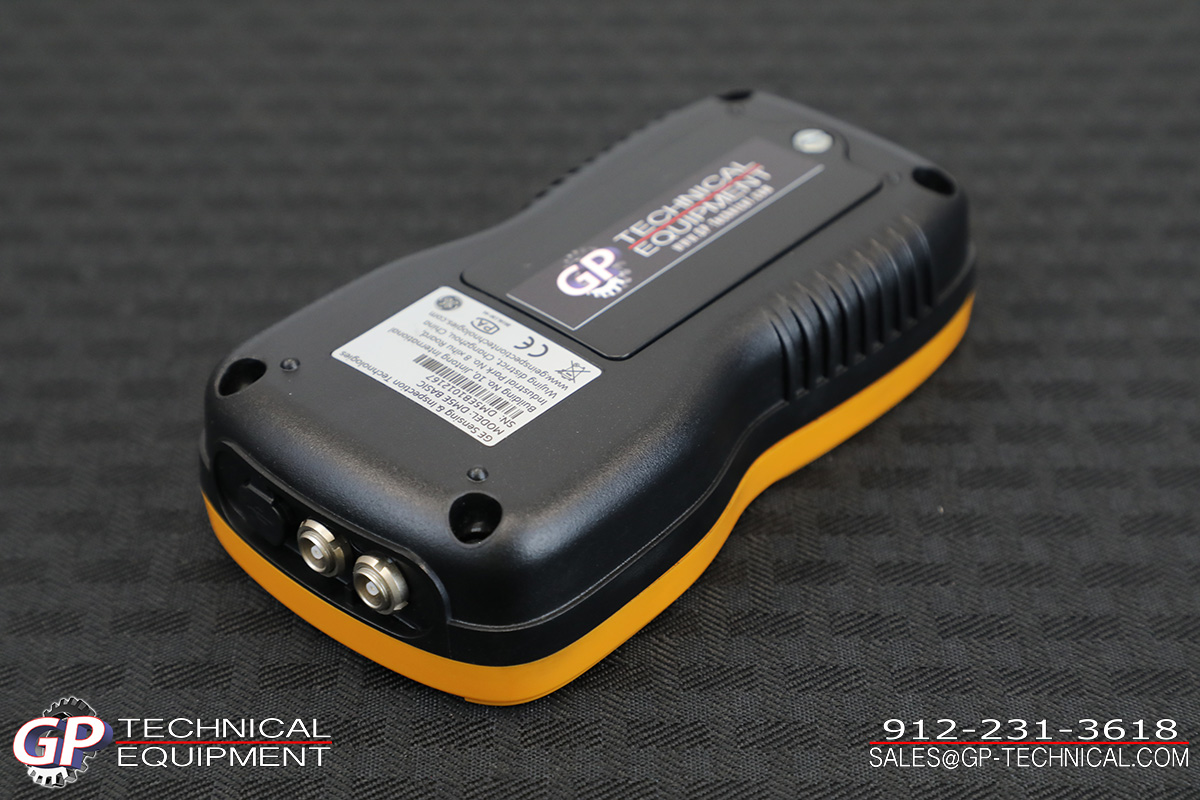

The rugged housing of the DM5E Basic is common to all versions. It is
ergonomically designed with a weight of just 223g, including its AA
batteries, which allow up to 60 hours of operation. The basic version is
specified to EN 15317 and features an LCD data display, which is backlit to
be visible in all lighting conditions. Instrument operation is carried out with
one hand via a user-friendly interface. This is a sealed, watertight and
dust-proof membrane keypad, which features a minimum of function keys
and arrow keys. Navigation through menus is simple and intuitive. The
basic version incorporates a wide range of features, including Min/Max
capture, B-Scan generation, alarms, and differential thickness measurement
to allow instant comparison between measured and nominal thickness.
The DM5E incorporates all the features of the DM5E Basic but also offers the
DUAL MULTI operating mode. This has been used in previous corrosion
thickness gauges from Waygate Technologies and has proved invaluable
in measuring thickness of metal through coatings. There is no need to
remove the coating at the measuring point, saving time and money. Users
can upgrade from DM5E Basic to DM5E in the field.
The DM5E DL
The DM5E DL is identical to the DM5E but features a built-in datalogger
supporting grid-style data file formats. This is capable of holding up to

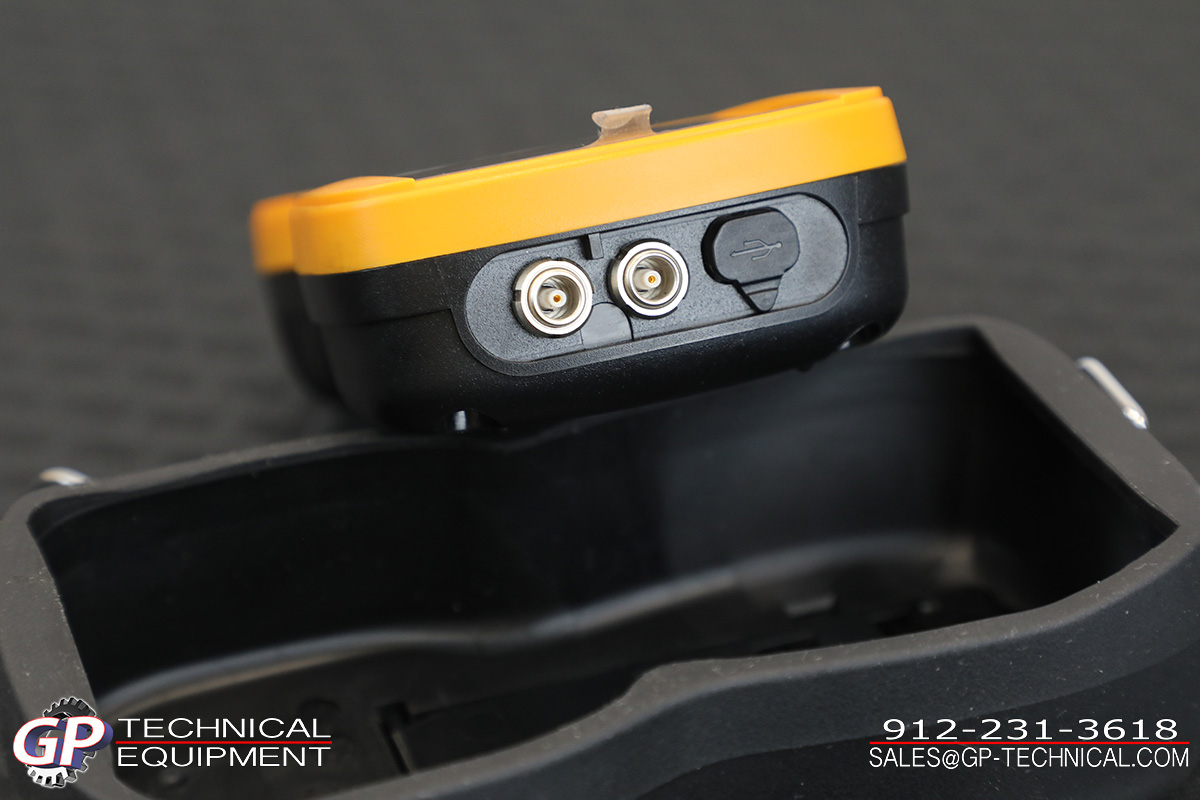

50,000 readings. Files can be transferred to a PC by means of a Mini USB
port. Files can also be imported directly into Microsoft Excel through
a macro. All alphanumeric data for filenames and notes is directly entered
via the keypad. Both the basic and standard versions are field-upgradable
to become DL versions

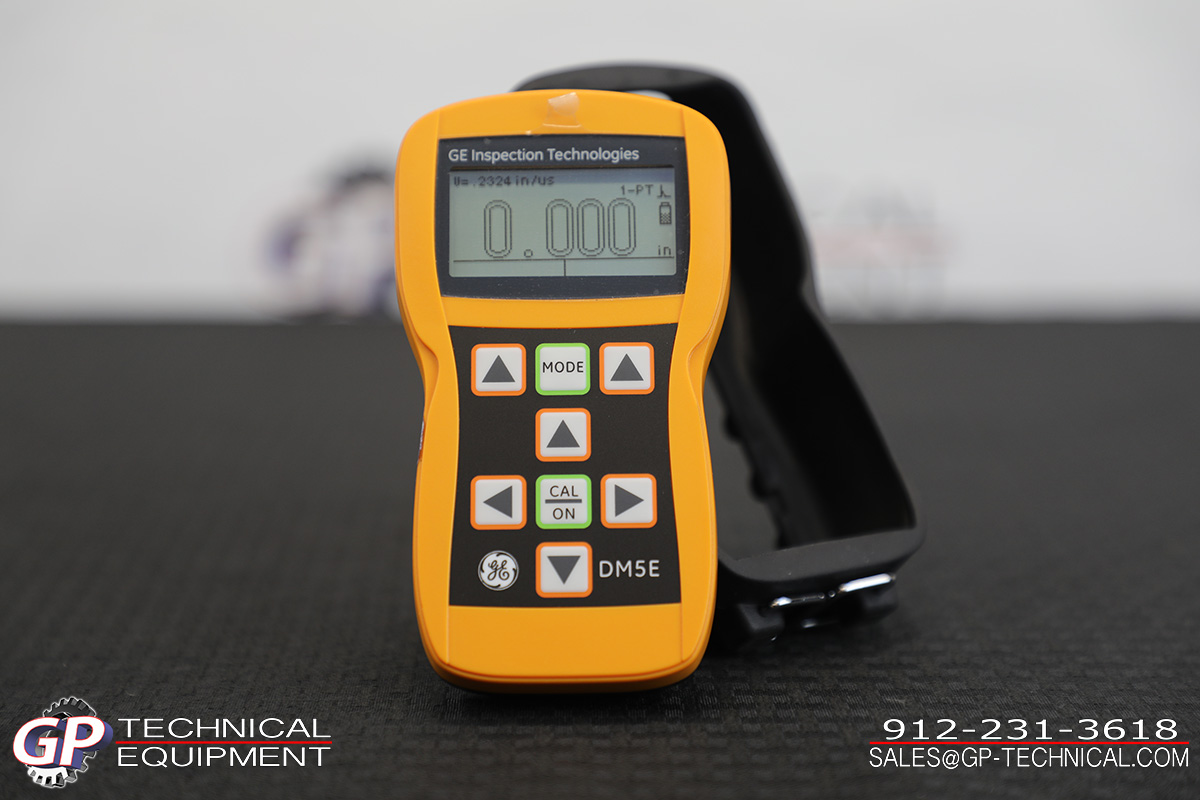

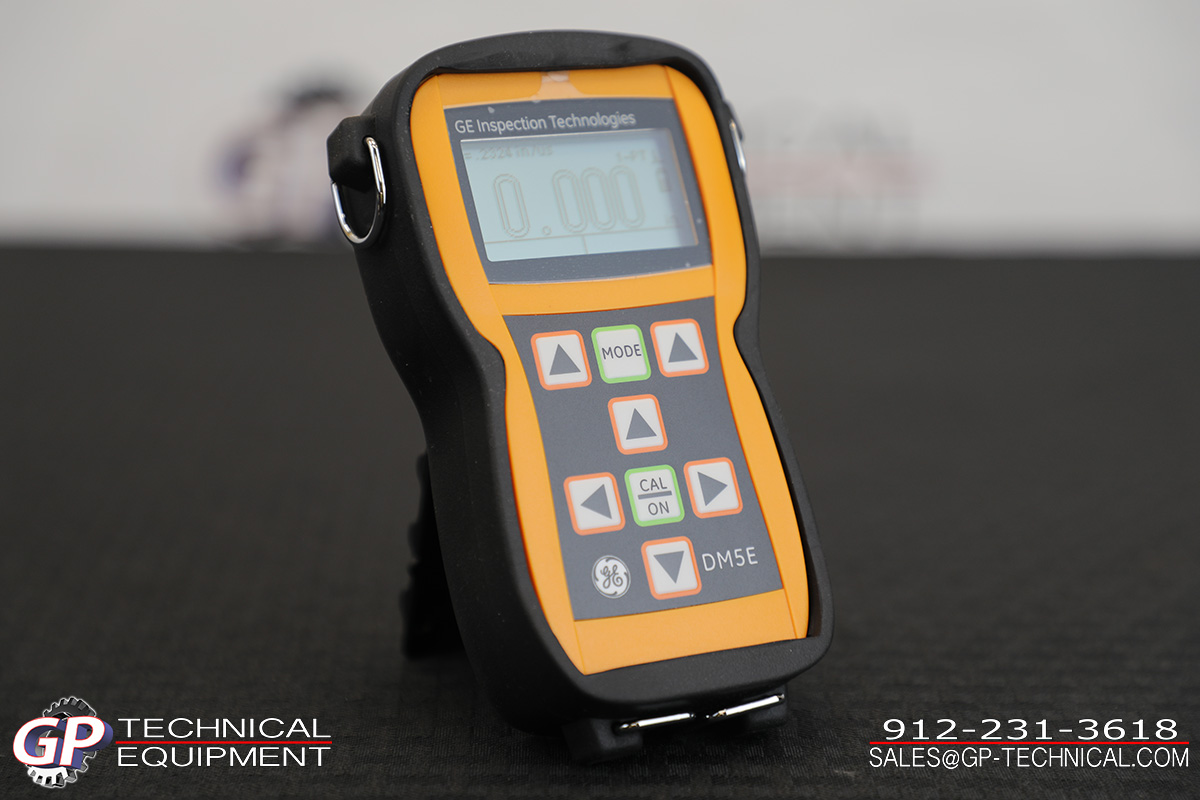

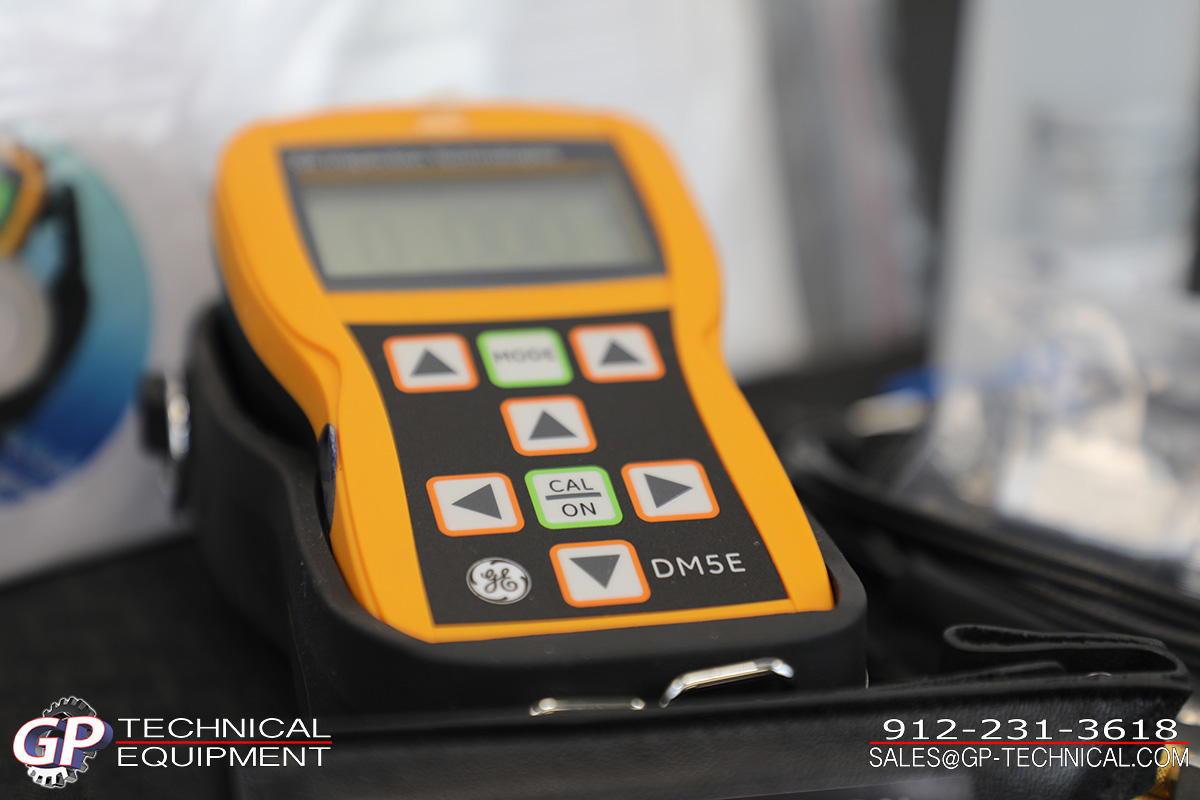

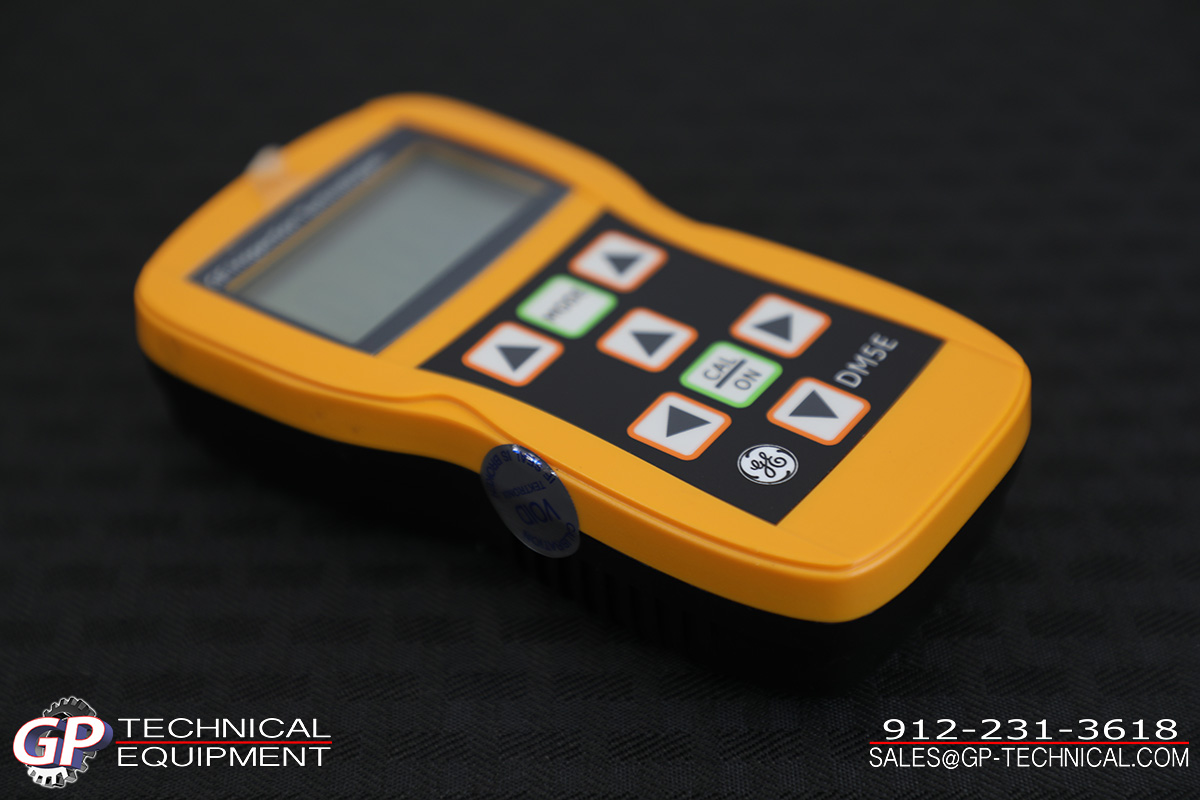

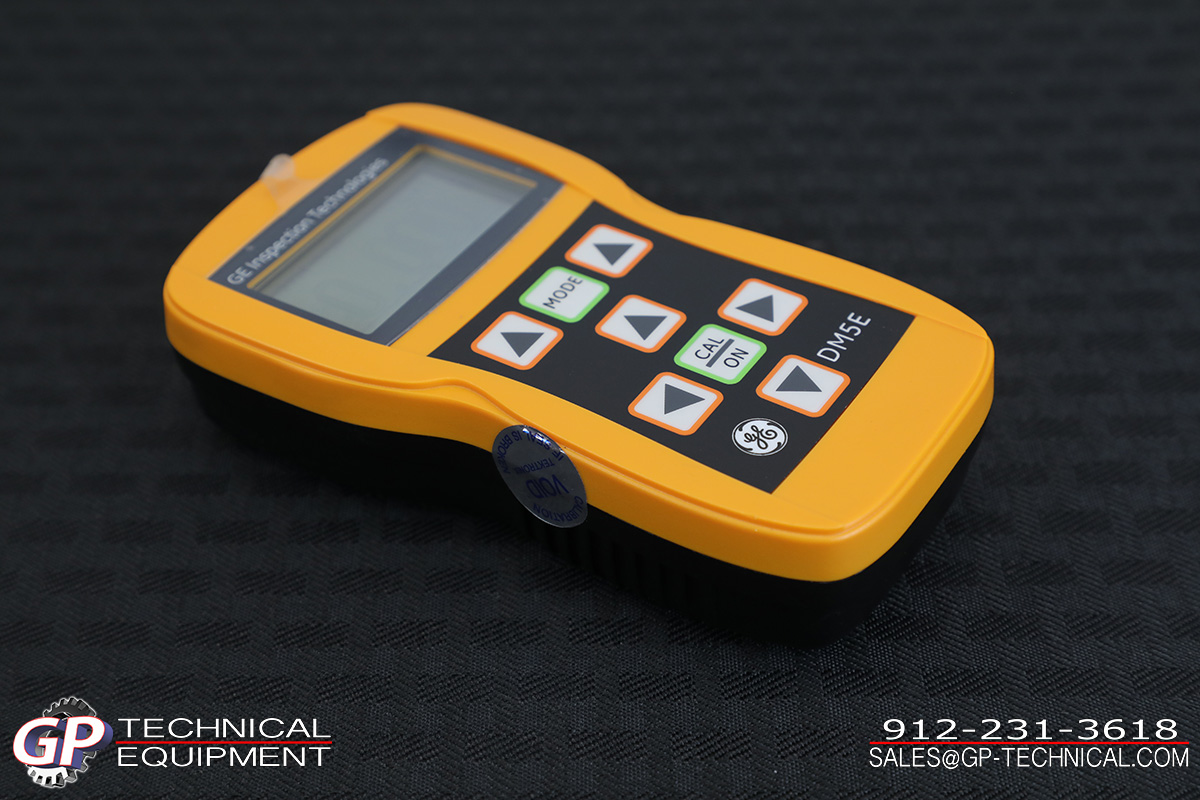

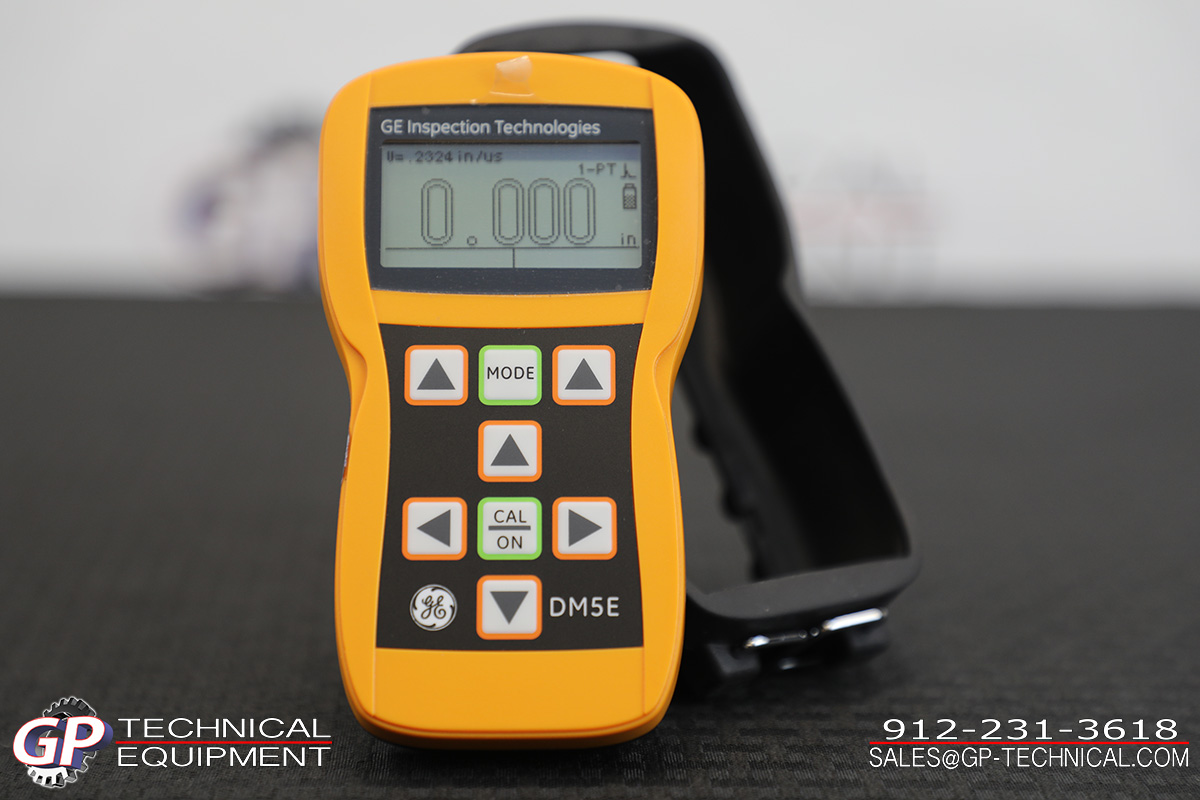

User-Friendly Operator Interface

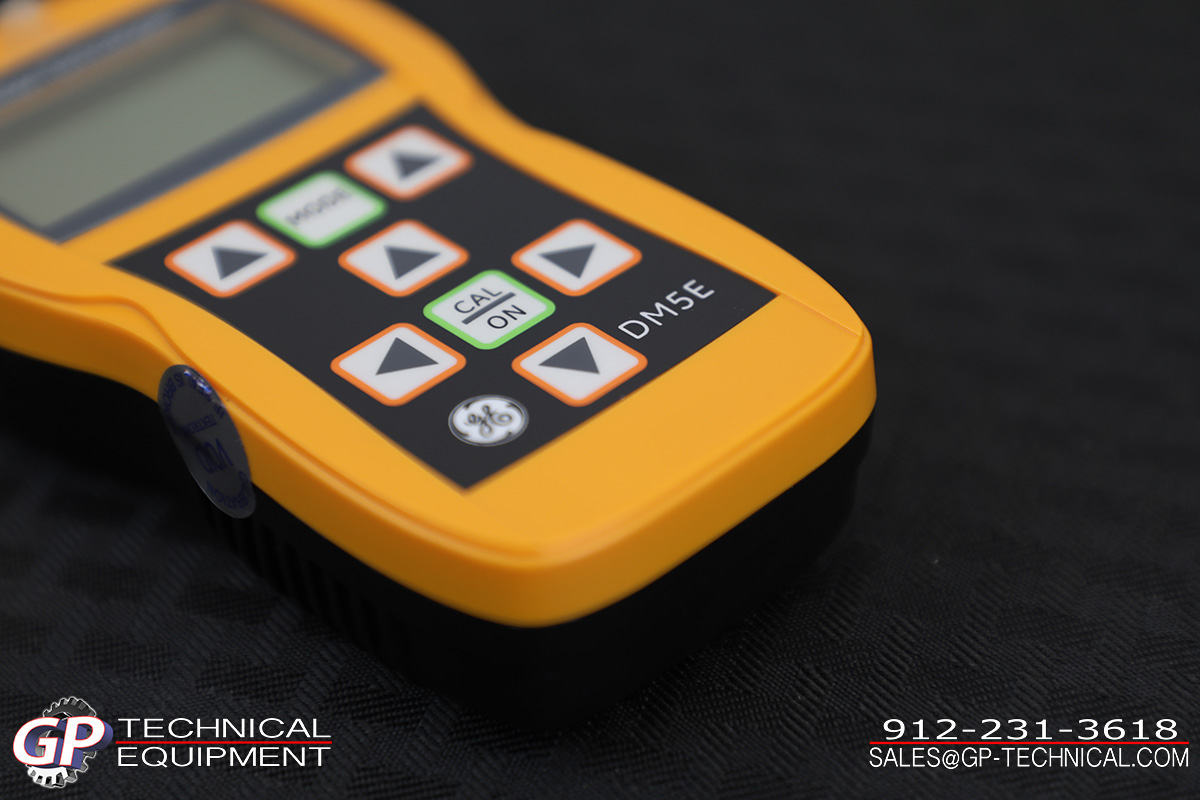

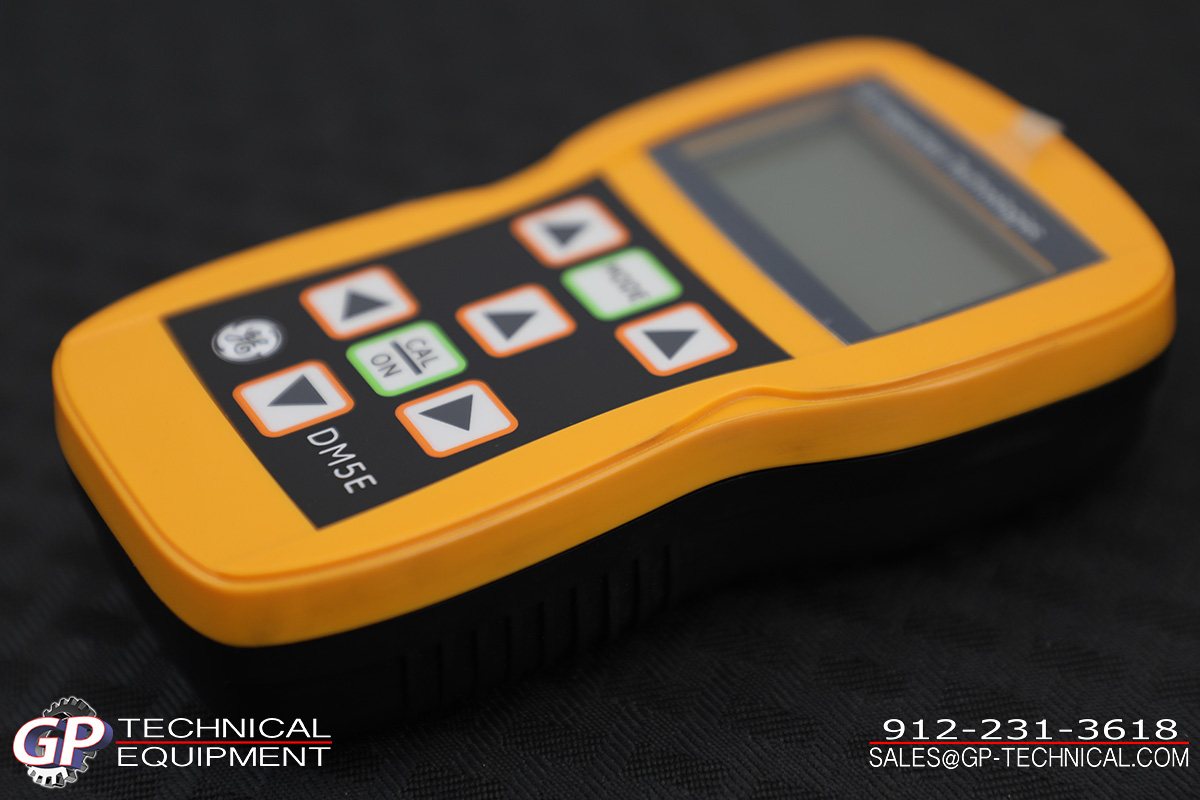

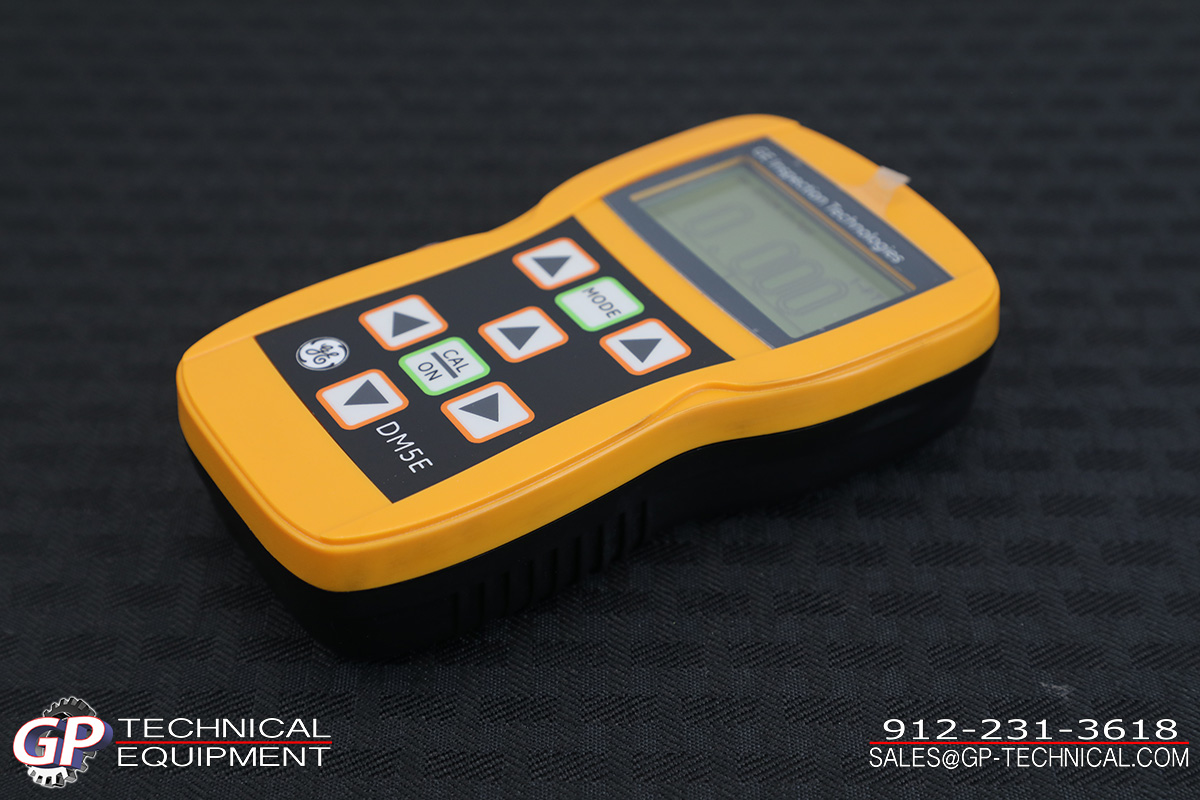

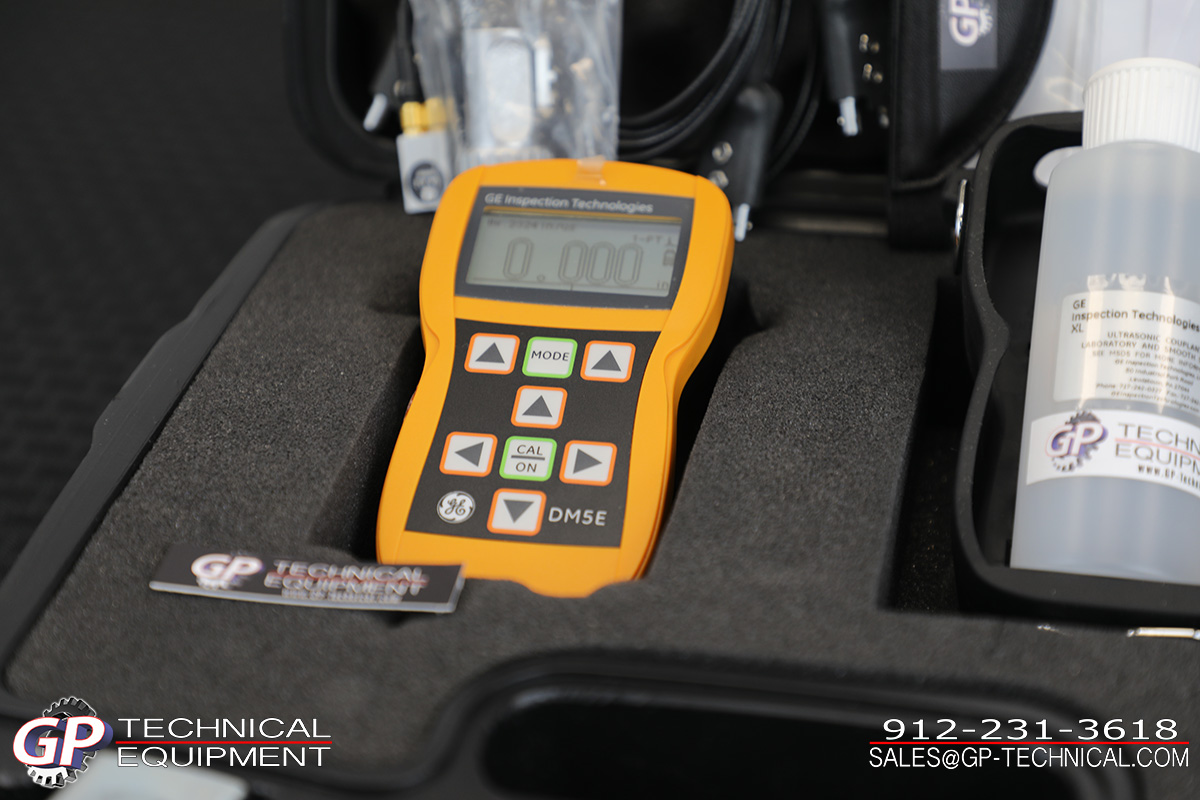

All versions of the DM5E have the same user-friendly operator keypad interface. This has a central Mode key, a calibration/on/off key, two function arrow keys to activate and set functional control and four arrow keys for adjusting parameter values and for navigating through the intuitive single level menu. The keypad allows access to all calibration, set-up and measurement display modes of the instrument. With the DL version, a file display mode allows users to create and store thickness reading s in files. All calibration is menu-driven and the operator is guided through every step. There is a built-in calibration reminder, which can be set to remind the user to calibrate after a specified number of measurements or after a given time period.

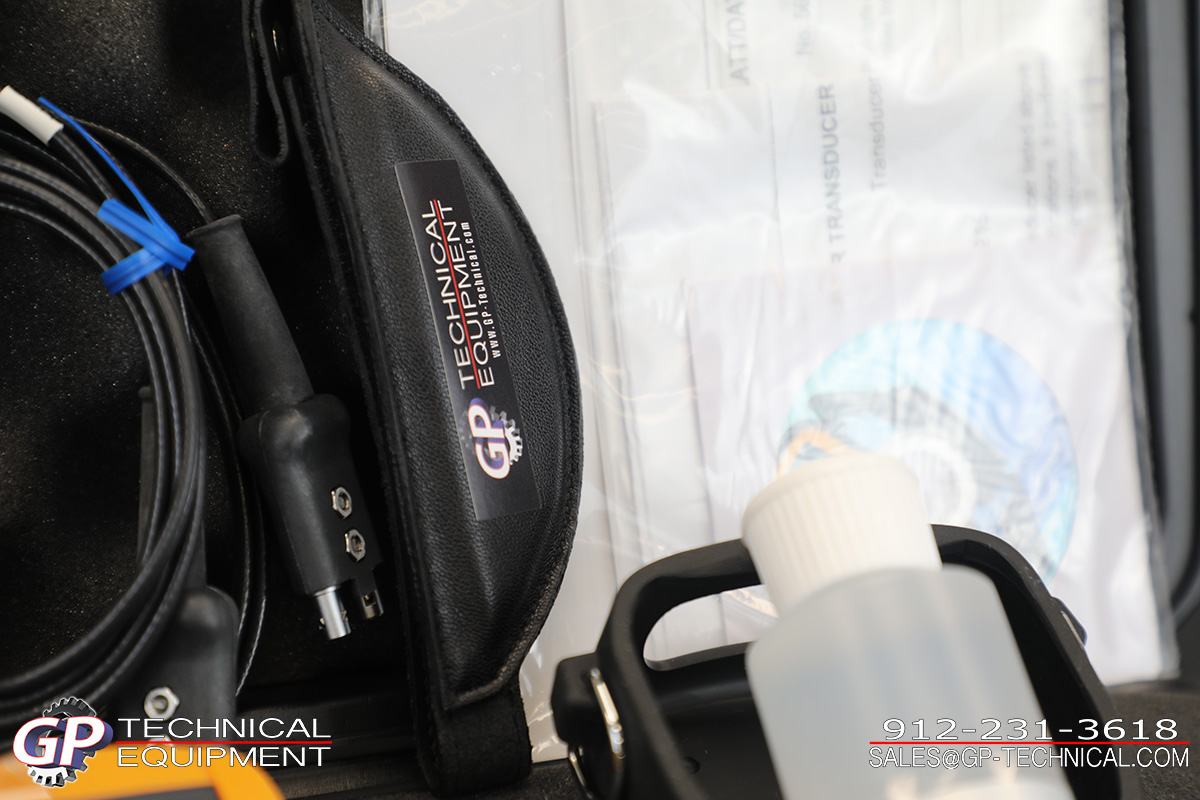

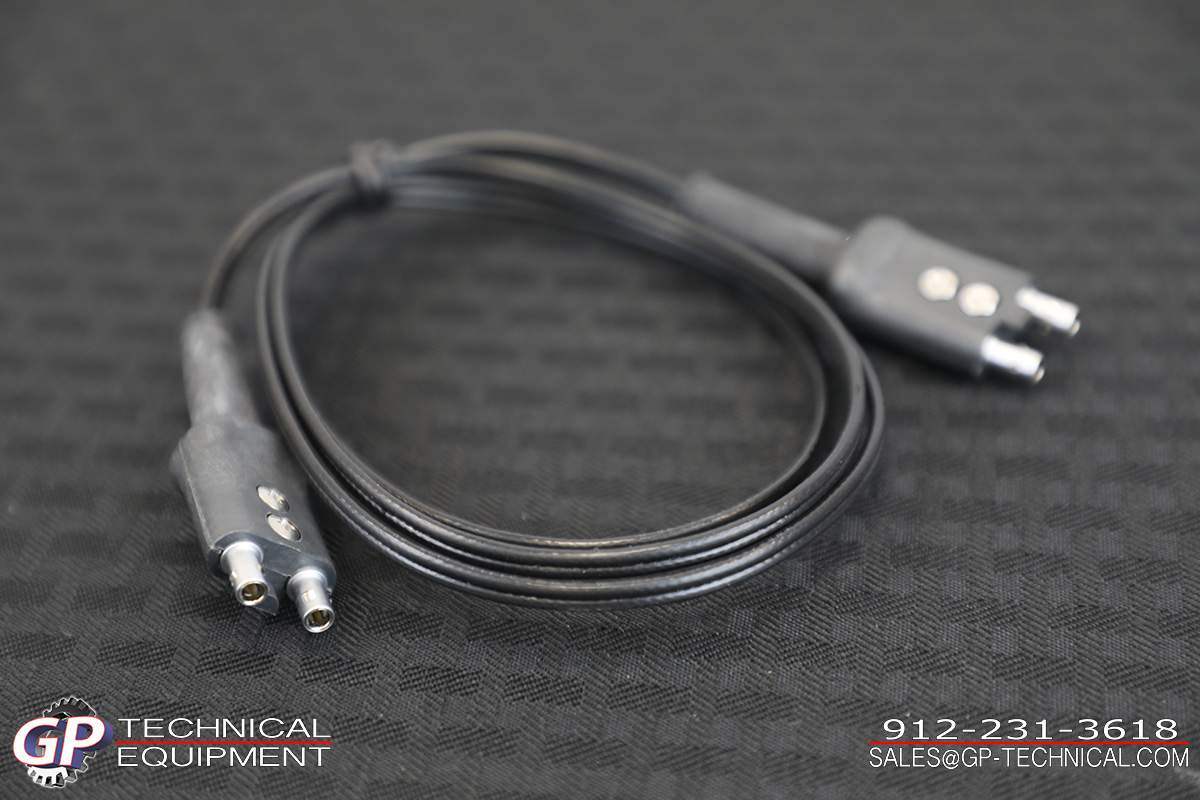

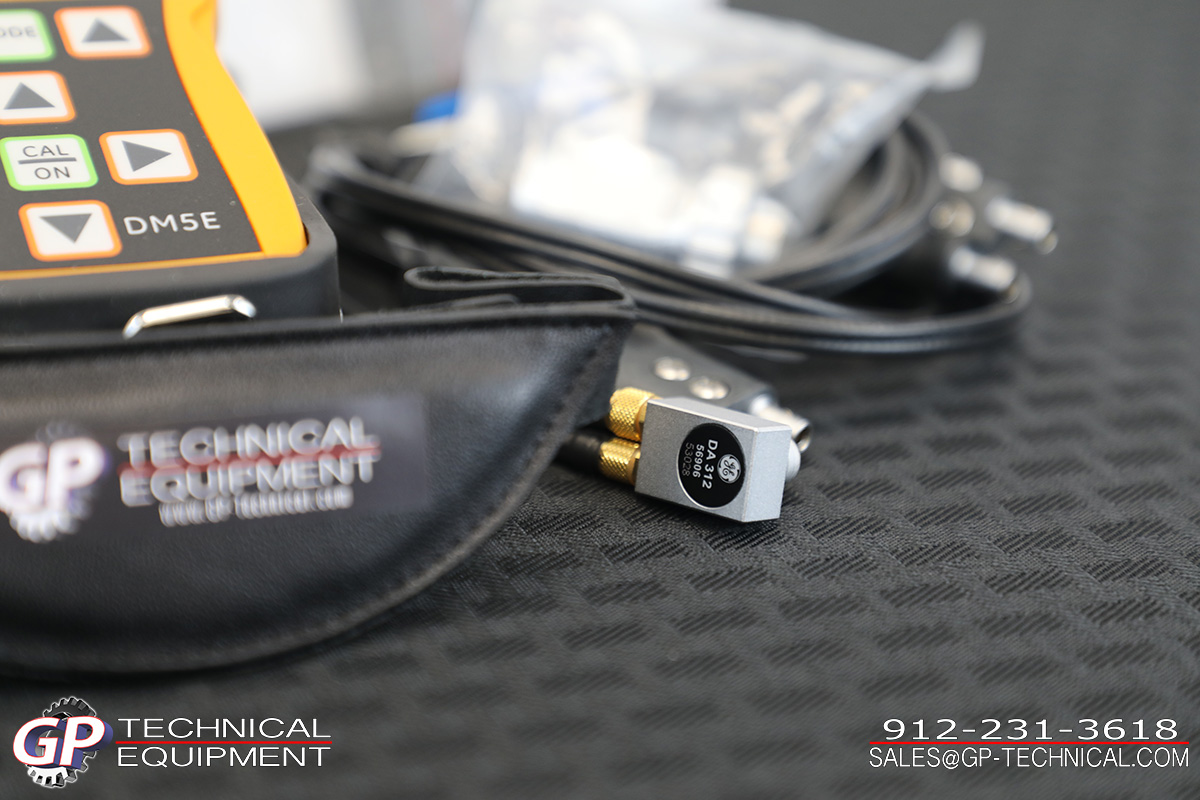

New Range of High Performance Probes

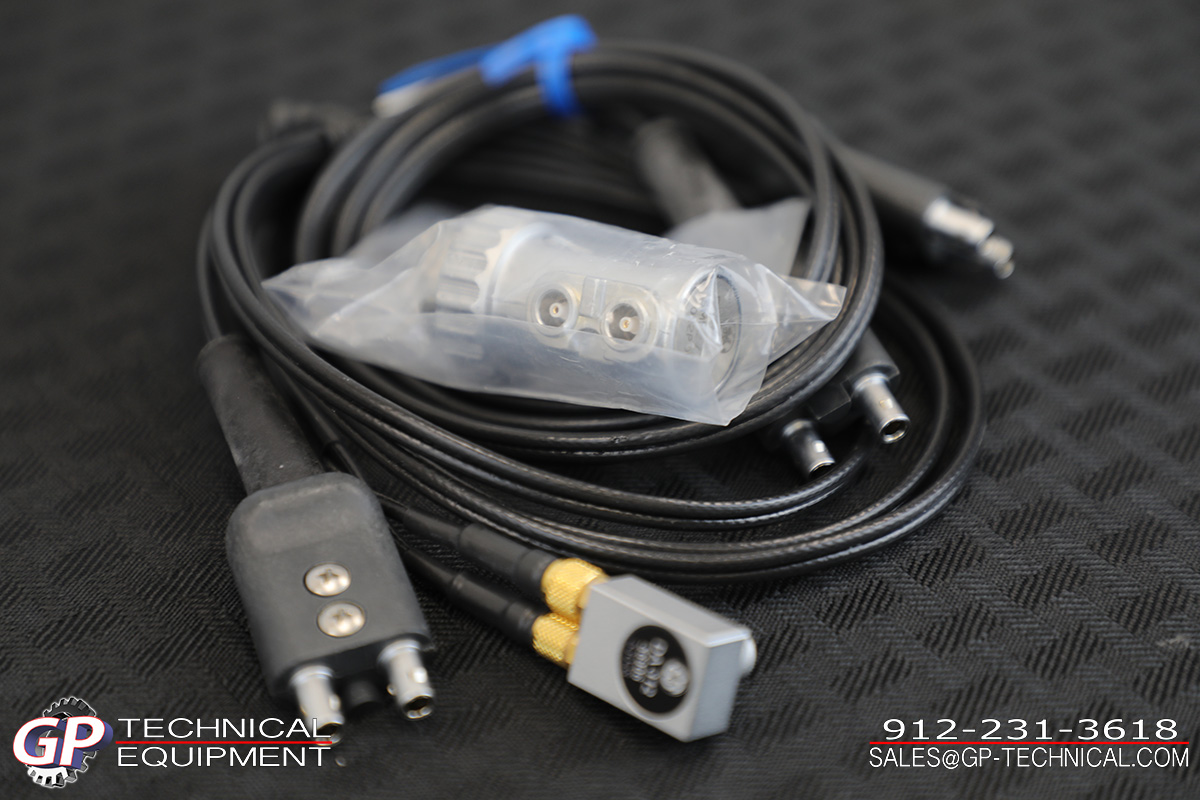

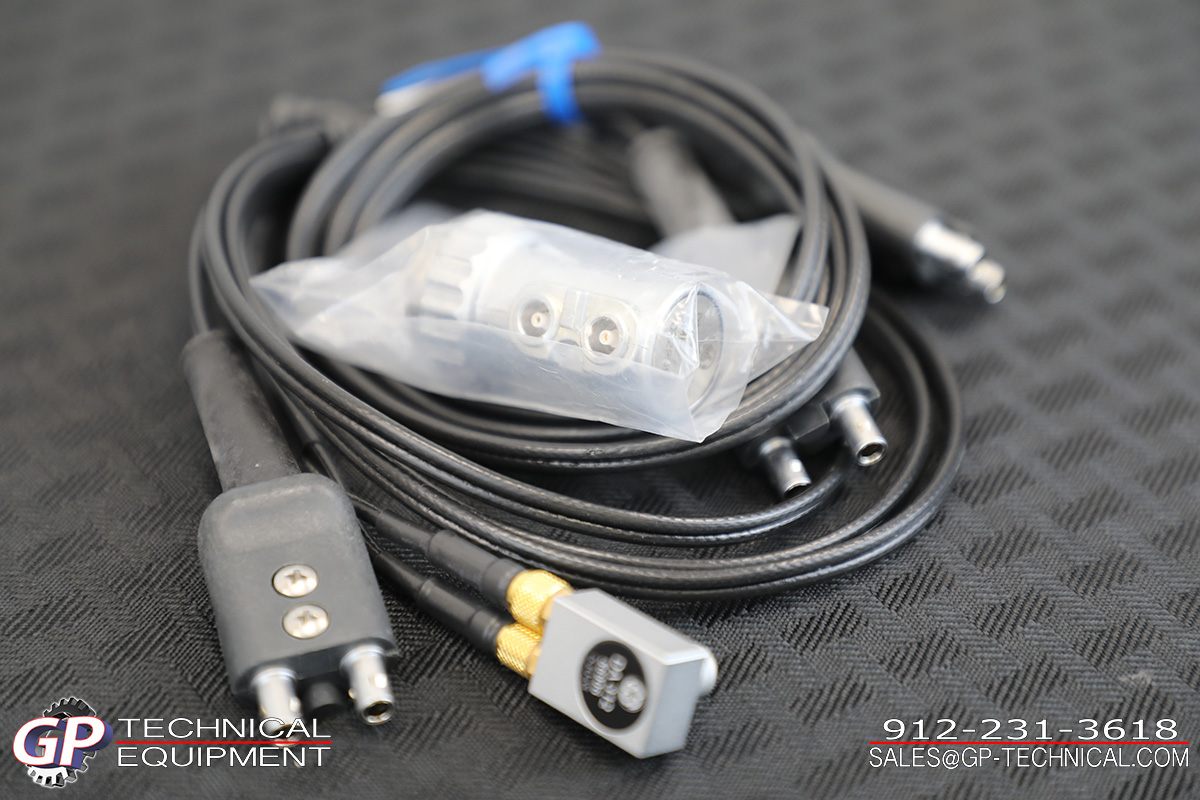

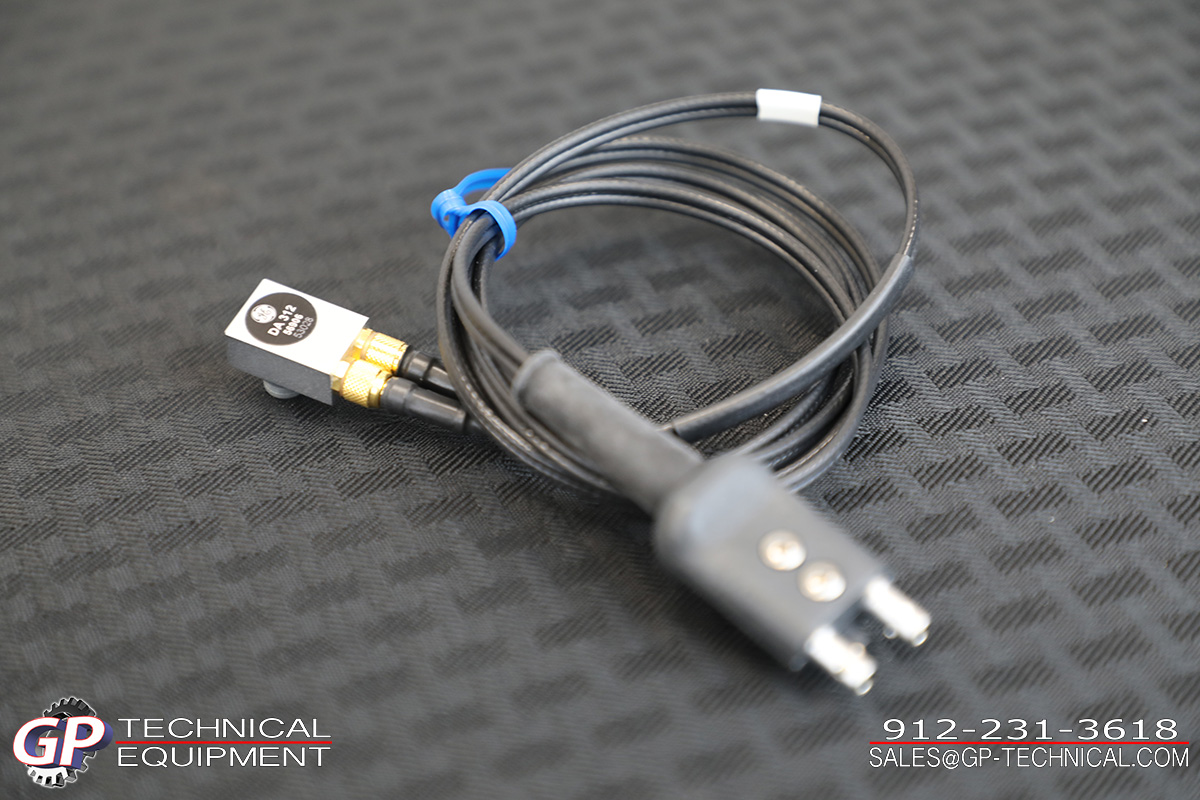

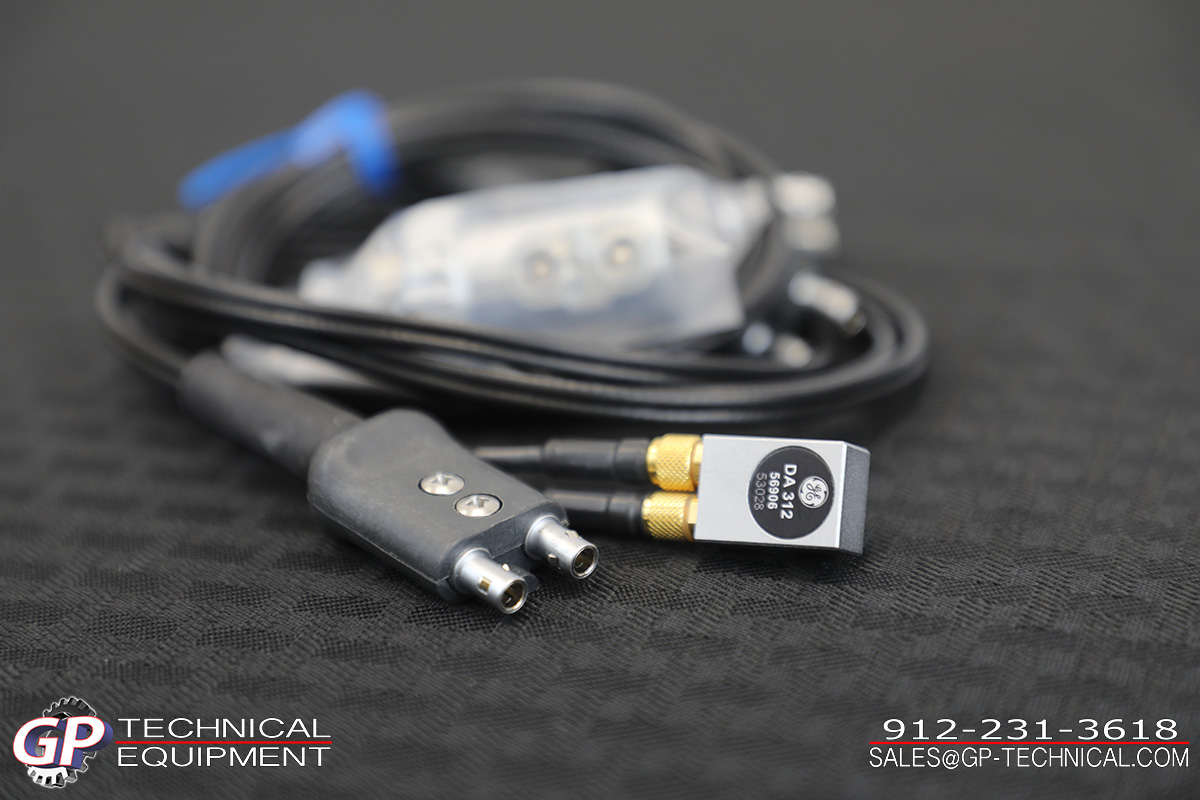

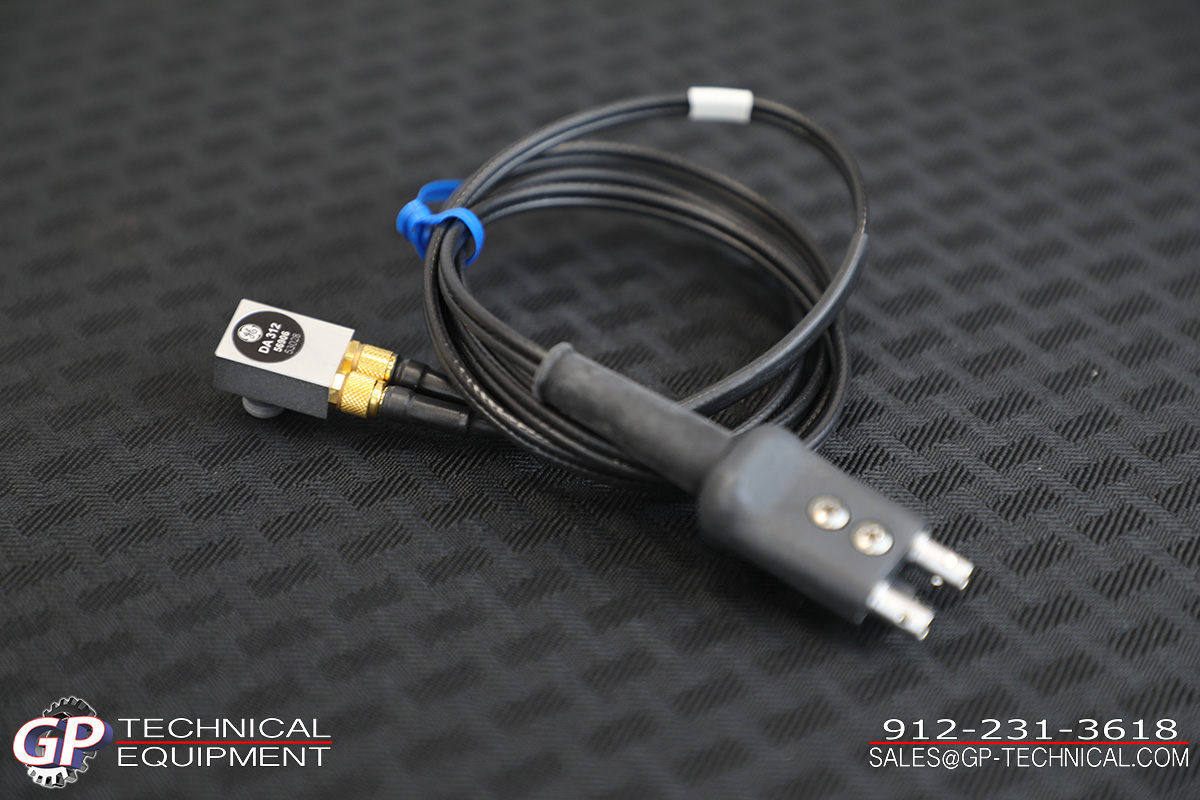

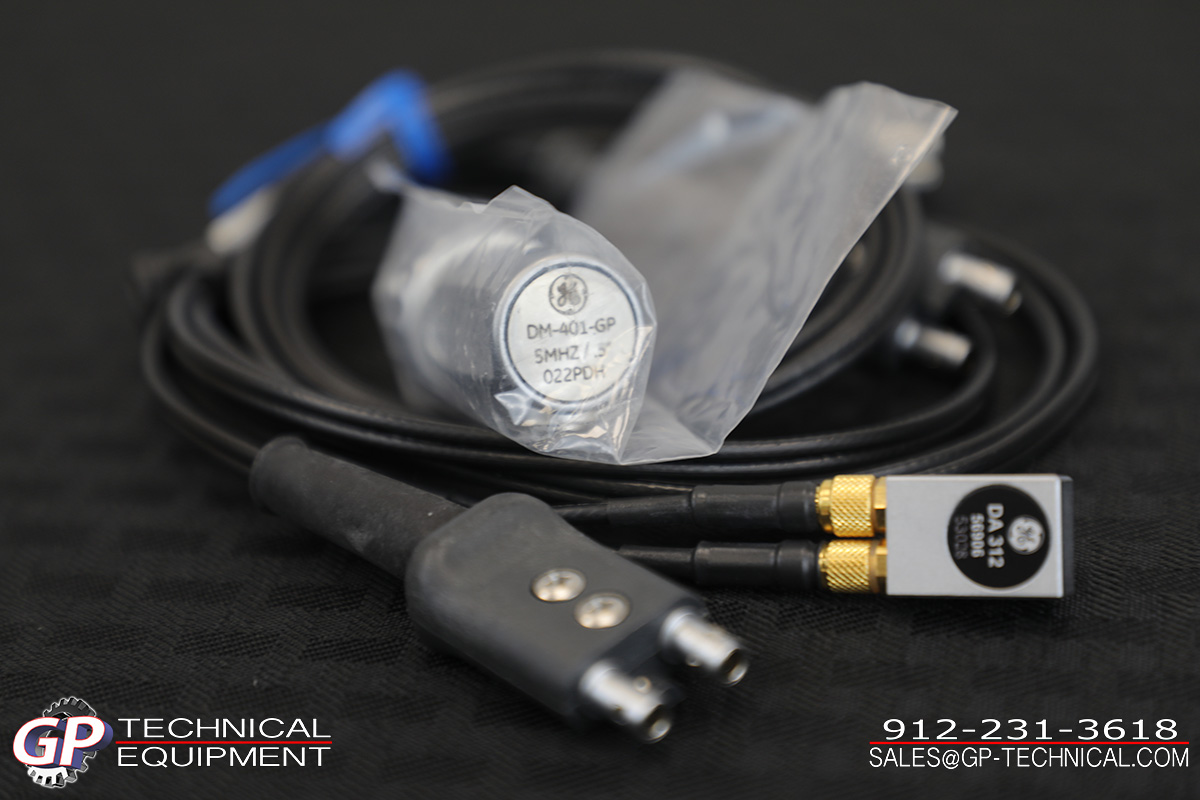

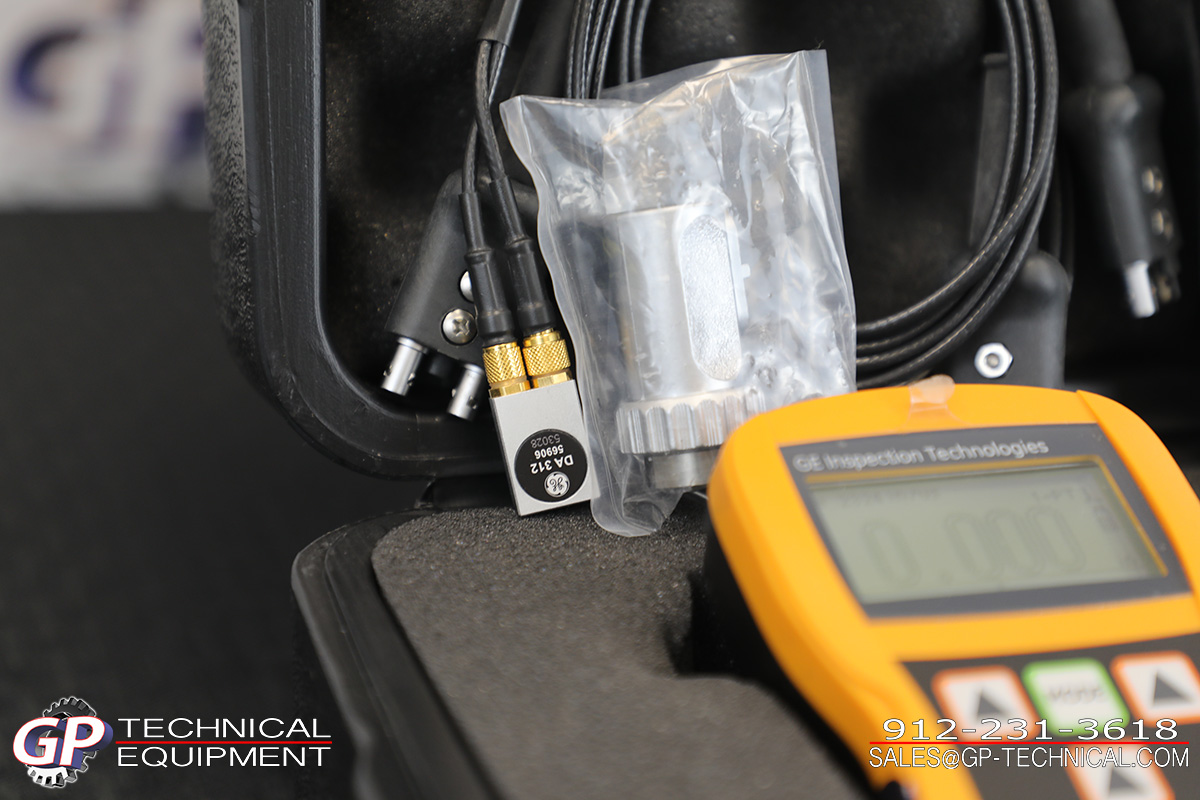

A new set of ultrasonic probes has been developed for the DM5E family to provide the instruments with optimized performance, even at very high temperatures. The DA5xx series complies with EN 15317 and includes a 5 MHz standard probe for general purpose applications, a 2MHz version, for high penetration as well as a 7.5MHz fingertip probe. A newly developed 5MHz high temperature probe offers an operating range from -10°C up to +204°C. (Standard probes operate to 70°C)
Thickness Measurement Under Coating
Both the DM5E and the DM5E DL offer Dual Multi Measurement. Virtually all components and structures subjected to thickness measurement will have some kind of protective coating. Such coatings, including paint, contribute significant error to thickness measurements of underlying metal walls when using conventional methods. In addition, the removal of coatings, and their subsequent reapplication, involves considerable cost and time. With the field proven Dual Multi feature there is no need to remove any protective coating. It is only necessary to select Dual Multi mode, place the probe in position and take the measurement.
A Range of Measurement Displays
All versions of the DM5E offer a range of measurement displays.
• Normal: the thickness value appears as large digits in the centre of the display.
• MIN Scan: a minimum thickness scan that allows the user to run the probe over the wall surface. After the evaluation period, the minimum material thickness measured is displayed.
• MAX Scan: a maximum thickness scan is exactly the same as a MIN Scan apart from the fact that the maximum thickness measured is displayed.
• DIFF/RR%: compares the measured thickness with a user-specified nominal thickness. The dimensional difference between the two values is displayed, as is the percentage difference.
• B-Scan: displays a graphic representation of a B-Scan showing minimum thickness values. The graph is derived by measuring and recording at 1 point per second
